Product Overview

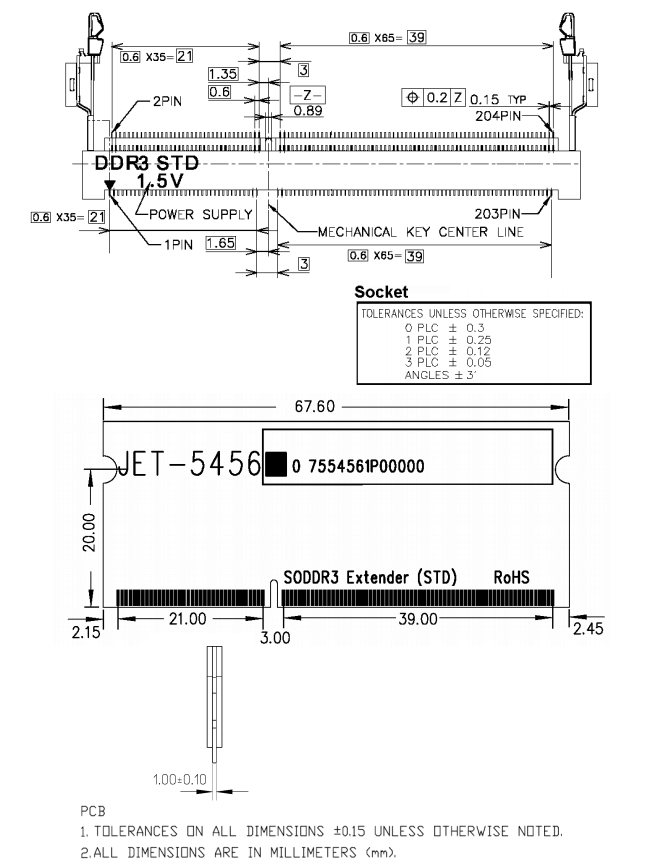

JET-5456 - DDR3 SODIMM Extender.
The JET-5456 Extender is designed to protect Memory Module and to extend the life of the original sockets on the system or tester. Simply plug the JET-5456 into the DDR3 SODIMM sockets on the motherboard or tester. Then insert the memory module onto the JET-5456 for testing or burning-in.
Feature
- Design:6 Layers PCB with low noise design
- Compatibility: Compliant with JEDEC Specification MO-268B
- Lifespan: Under normal operation use, the lifespan of this DDR3 SODIMM extender could exceed 600 insertions
- Protection: Over-Current protection with Virtual Fuse (Jujet's patent)
RoHS Compliant
