AP6275S 802.11ax/ac/a/b/g/n WiFi+Bluetoth 5.0 Combo SiP Module (WiFi 6), 2T2R

Overview:

- Chipset: Broadcom

- Antenna: External

- Form Factor: SiP LGA Type

- Interface: WLAN: SDIO 3.0/2.0; Bluetooth: UART/PCM

- Support: Linux, Android

AP6275S is an 802.11ax (WiFi 6) SiP Module, 802.11ax allow Increased capacity, faster speed, better coverage connections, improve the battery life of IoT sensors, and extend the range of Wi-Fi signals. By implementing the new 802.11ax standard with its unique features such as OFDMA, 1024QAM, Target Wake Time (TWT), and spatial reuse, the AP6275S module enables smooth streaming of high-resolution videos, fewer dropped connections and faster connections farther away from the router and in dense environments.

The Wi-Fi and Bluetooth 5.0 functionalities module with seamless roaming capabilities and advanced security. The 802.11 ax sip module can support Multi-User MIMO (MU-MIMO) technology to increase channel capacity when simultaneously servicing multiple devices using the same frequency chunks. Furthermore the included SDIO interface for Wi-Fi, UART/ PCM interface for Bluetooth.

* Evaluation board are available to purchase at https://mfactors.com/ap6275s-evb-11a-b-g-n-ac-ax-2t2r-wifi-bt5-0-evaluation-board-usb-cable-usb-type-a-m-to-mini-usb-m-dipole-antenna-2dbi-2-4g-5ghz-sma-m-connector-black-ft232-usb2-0-type-a-to-uart-adapter-board/

Standard
802.11ax/ac/a/b/g/n, WiFi+BT5.0 Module Bluetooth: BDR, EDR(1Mdps&2Mdps), LE(1Mdps), 2LE(2Mdps)
Chipset
Mac/BB/RF	Broadcom
Interface
WLAN: SDIO 3.0/2.0; Bluetooth: UART/PCM
Form Factor
SiP LGA Type
Radio
Antenna	External
Operating Frequency	2.4GHz ISM Band: 2.400GHz~2.4835GHz 5GHz UNII Band: 5.15GHz~5.35GHz, 5.47GHz~5.725GHz, 5.725GHz~5.85GHz Bluetooth: 2402MHz~2480MHz
Modulation	802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM Bluetooth: GFSK, π/4-DQPSK, 8DPSK
Environmental
Temperature Range	-30°C~85°C (Operating/TBD), -40~105°C (Storing)
Humidity (Non-Condensing)	10~95% (Operating) Non-Condensing

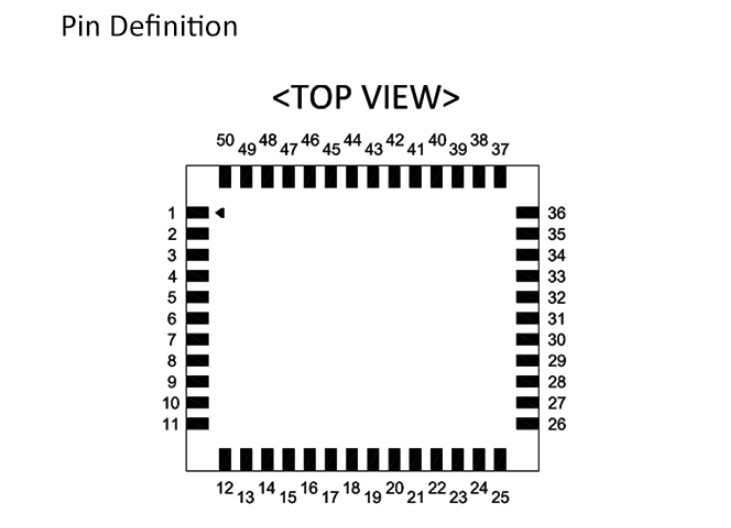

Physical Specification
Dimensions (± 0.5mm)	15mm x 13x mm (Typical) x 1.55mm (Maximum)
Software
Driver	Linux, Android

Document
File Name	Type	Updated	Download
AP6275S_datasheet ver1.0_20191129		2019.12.11
