B32 Series (nano SIM to SmartCard Extender)

Introduction:

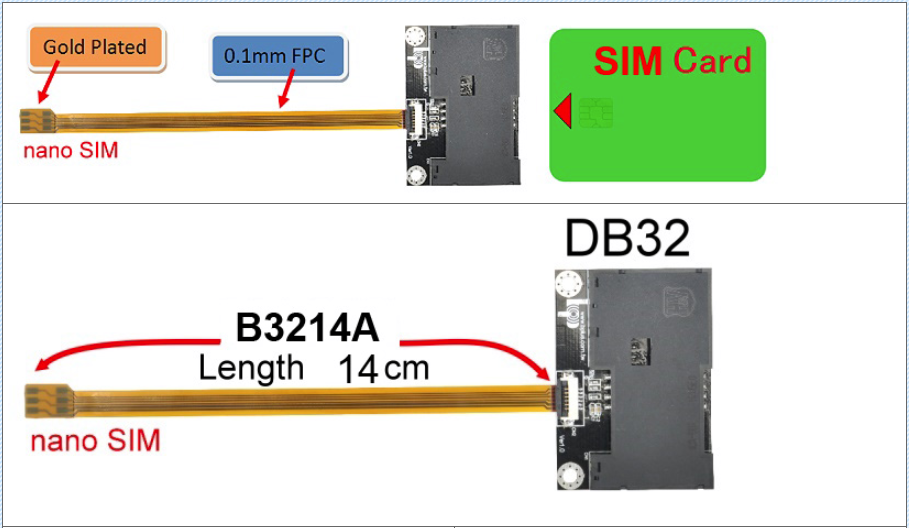

B3214A-DB32 nano SIM to SmartCard Extender is a debug and test tool especially for iPhone5. Design the FPC cable for flexible use.
It allows a nano SIM Card to be extended from the host slot for SmartCard interface. As thickness of FPC is 0.1mm, B3214A-DB32 can be routed through narrow slit between body and cover case.
It’s especially designed to save valuable labor and time in the production environment with test pads for SIM card signals. The SIM extender is designed to minimize the signal degradation effects of the extender by proven design techniques.
It’s also a powerful tool for engineers,or use for mobile phone SIM test protection.
