GD1402A (U.3/GEN-Z (SFF-8639) TO M.2 SSD ADAPTER)

GD1402A (U.3/GEN-Z (SFF-8639) TO M.2 SSD ADAPTER)

GD1402A (U.3/GEN-Z (SFF-8639) TO M.2 SSD ADAPTER)

$78.00
  • Shipping: Calculated at Checkout
Unavailable
Current Stock:Only left:
Description

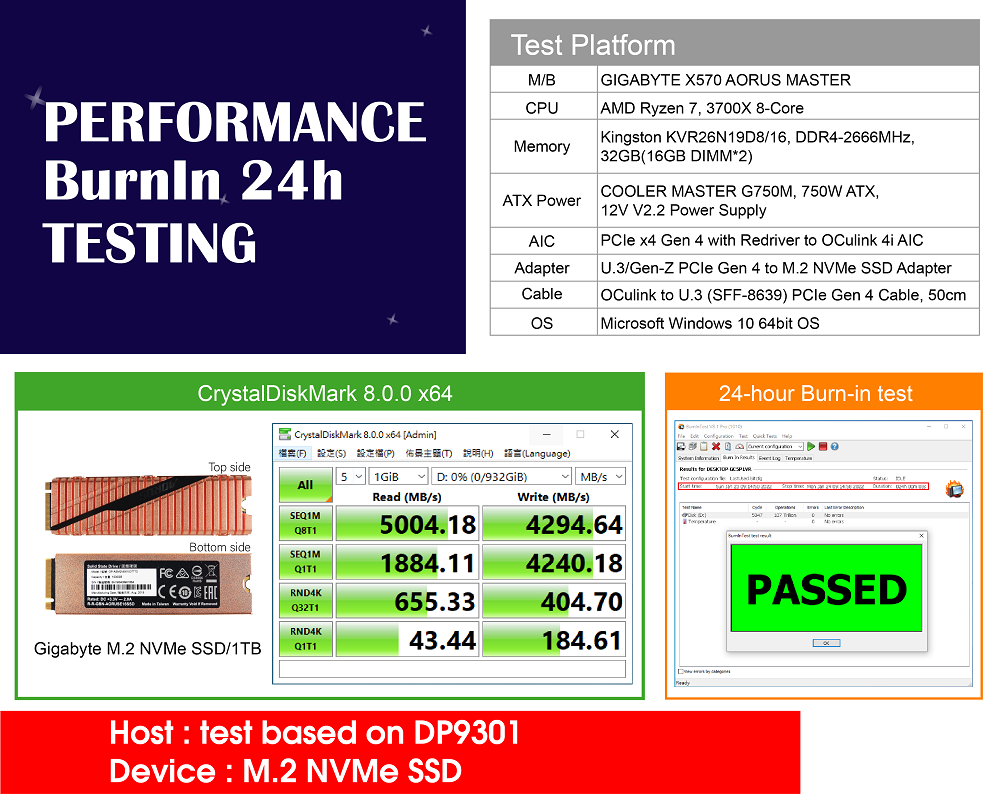

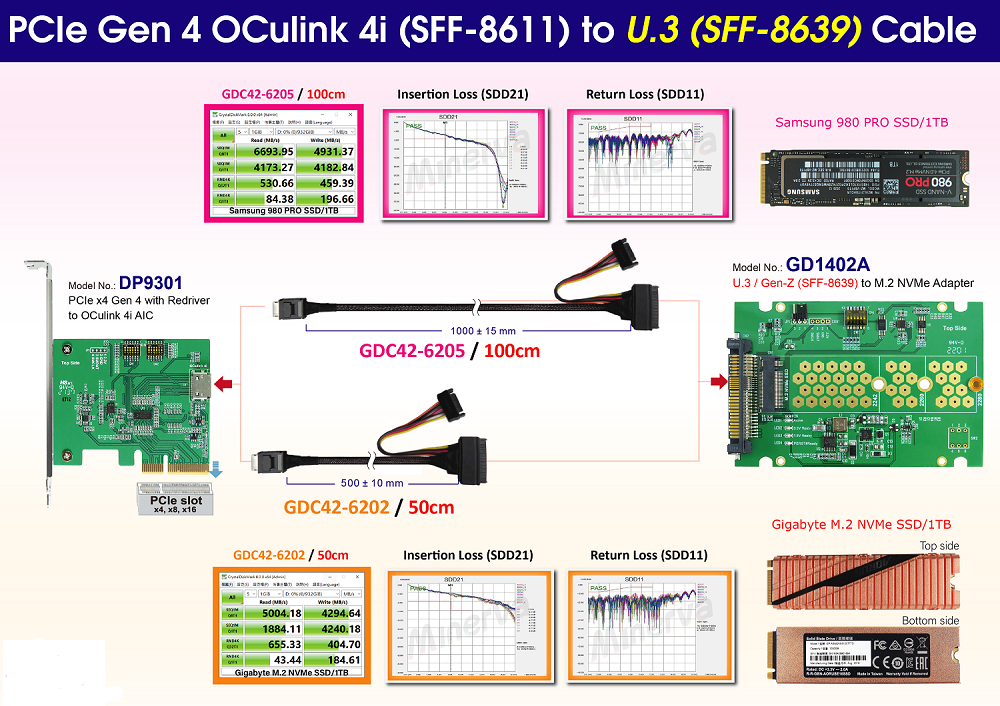

  • M.2 NVMe to U.3(SFF-8639) convert
  • Built-in SFF-8639, 30u” connector, pin-out defined by SFF-9402 Rev1.1
  • PWM 12V to 3.3V synchronous buck converter Power for M.2 NVMe SSD
  • ◆ 5.5A maximum output current
  • ◆ Output Discharge Control
  • ◆ The output overcurrent protection(OCP)
  • ◆ Uundervoltage lock out protection(UVLO) monitor
  • ◆ Over/Under Voltage Protection
  • ◆ Thermal shutdown protection
  • ◆ ESD HBM (Human Body Mode)/500V
  • Built-in 3.3V Hot Plug Power with eFuse protection for M.2 NVMe SSD
  • ◆ Programmable Current Limit: 6.5A
  • ◆ Programmable Inrush Current Slew Rate
  • ◆ Thermal shutdown protection and fault alert
  • ◆ Back-to-Back (B2B) FET Operation
  • Built-in 3.3V input with 400W TVS(TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
  • Built-in 3.3V output with 30-V, N channel NexFET power MOSFET, 32 m ohm
  • Built-in 3.3V output with SCHOTTKY BARRIER Power Rectifier
  • Supports M.2 3.3V&1.8V supply
  • Supports M.2 VIO_CFG Signal
  • Supports M.2 PERST# Signal 3.3V and 1.8V Voltage-Level Translator
  • Supports M.2 CLKREQ# Signal 3.3V and 1.8V Switching Translator
  • Supports M.2 WAKE# Signal 3.3V and 1.8V Translator
  • Supports PWRDIS Signal from U.3 pin to M.2 pin
  • Supports M.2 /1.8V to U.3/3.3V SMBCLK, SMBDATA Level Shift
  • Supports M.2 /1.8V to U.3 /3.3V SMBCLK, SMBDATA isolated, repeater
  • Supports M.2 /1.8V to U.3 /3.3V SMBCLK, SMBDATA Hot-Swap

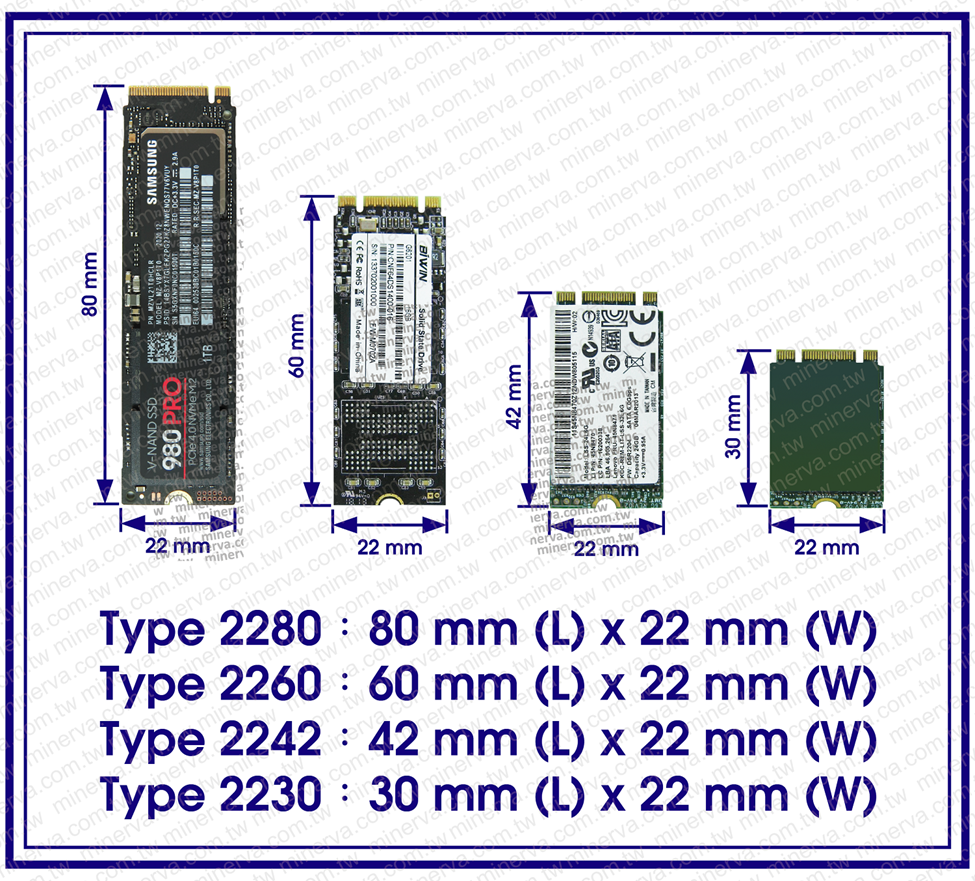

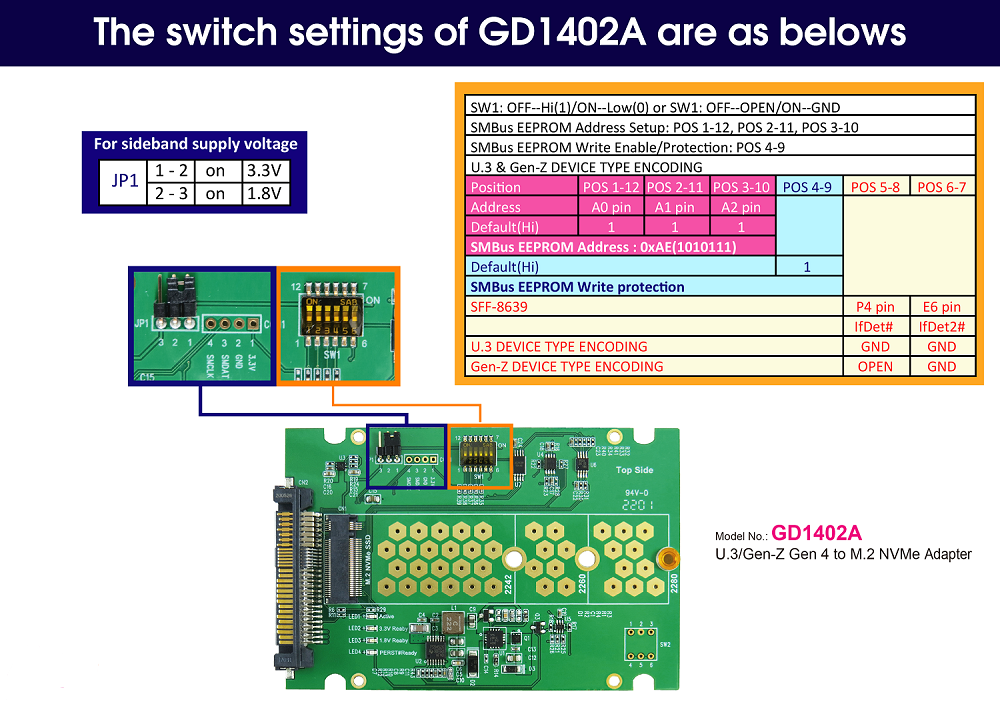

  • Built-in SMBus EEPROM 64KB
  • LED1 RED Blinking indicates M.2 active status
  • LED2 GREEN ON indicates 3.3V power ready
  • LED3 GREEN ON indicates 1.8V power ready
  • LED4 RED ON indicates PERST# signals ready
