PP1061 (mSATA to PCIe x1 Adapter)

Introduction:

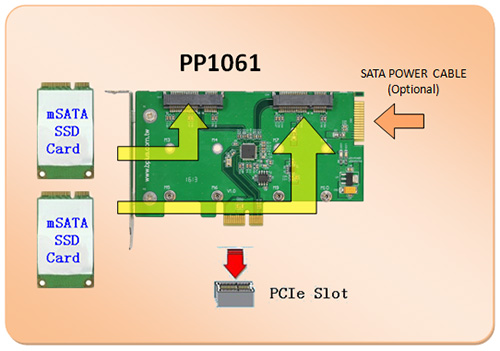

The mSATA to PCIe adapter is a converter tool for PCI-E interface. This module allows you to connect 2 mSATA SSD to the PCI Express slot.
The module can support system boot.

Function

• Use ASM1061 single chip, 1-lane PCI Express to 2-port Serial ATA III Host Controller.
• Support Native Command Queuing (NCQ)
• Support port Multiplier
• Support system boot

OS Support

• AHCI standard inbox driver (eg. Windows, Linux OS)

Compliance

• Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Spec. Reversion 1.3
• Compliant with PCI Express Base Spec. Revision 2.0, Supports 1-Lane 5.0Gbps
• Compliant with Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i Serial ATA III: Electrical Spec. Revision
• Supports 2-port 6.0Gbps SATA III interface

Notice

• The Product just only support 2 mSATA slot, Can’t support mPCIe device module, otherwise it can’t work.
• The adapter can provide additonal power supply from SATA power cable, but the default is using the power from PCIe gold finger, it is enough.
