R3y series is PCIe x16 Edge Connector Extension Adapter cable, adapted to PCIe x1, x4, x16, M.2 Key M / A+E, mPCIe (mini PCIe), U.2 (SFF-8639) connectors to re-locate a PCIe card slot or bridge between slots on two different PCBs.

The ribbonized format of the axial cable provides a dense and flexible solution without signal attenuation for high speed PCIe Gen3 8Gbps Data Transaction, bidirectional 256Gbps (256GT/sec) for PCI x16, and 16Gpbs (16GT/sec) per PCIe lane.



  Specification

  • Maximum Speed:
    PCIe Gen3 8Gbps. Bidirectional 2.0GB/sec (16Gpbs , 16GT/sec) per PCIe lane, PCIe Gen2 (5Gbps) & PCIe Gen1 (2.5Gbps) compatibles.
  • Header (Male) Connector: PCIe x16
  • Receptacle (Female) Connector:
    PCIe x1, x4, x16, M.2 Key M / A+E, mPCIe (mini PCIe), U.2 (SFF-8639)
  • Cable: Length:
    Standard (015) = 15cm (6inch), Customized for 1~999cm (001~999)
    * Guideline: PCIe Gen3 8Gbps max 24 inch (60cm)
  • Cable Type:
    Flat, Twin Axial, Thickness=1.4mm (1/16 inch) Width=54mm (9mm*6, 2 1/8 inch)
  • Color: Black
  • Connector Type:
    Straight (SF), Right angles (SR), Left angled (SL), Dual Edge (SS)

  Bullet Points

  • Cable Quality:
    Stable PCIe Gen3 8Gbps or higher with high quality Axial Cable
  • Cable Flexibility:
    Highly-routable, foldable, flexible
    Thickness=1.4mm (1/16 inch) Width=9mm (3/8 inch)
  • Cable Length:
    Standard (015) = 15cm (6inch), Customized for 1~999cm (001~999)
    * Contact sales for customize: support@mfactors.com
  • PCB Quality:
    Experienced design and durable material for High frequency and low attenuation.
  • Connector Quality:
    Taiwan Made high quality for PC server / mother board.
  • Solder Point Protection:
    PCB-Swaddled and fixed with Bolts and nut to prevent tearing and short circuit for PCB-Cable solder points.

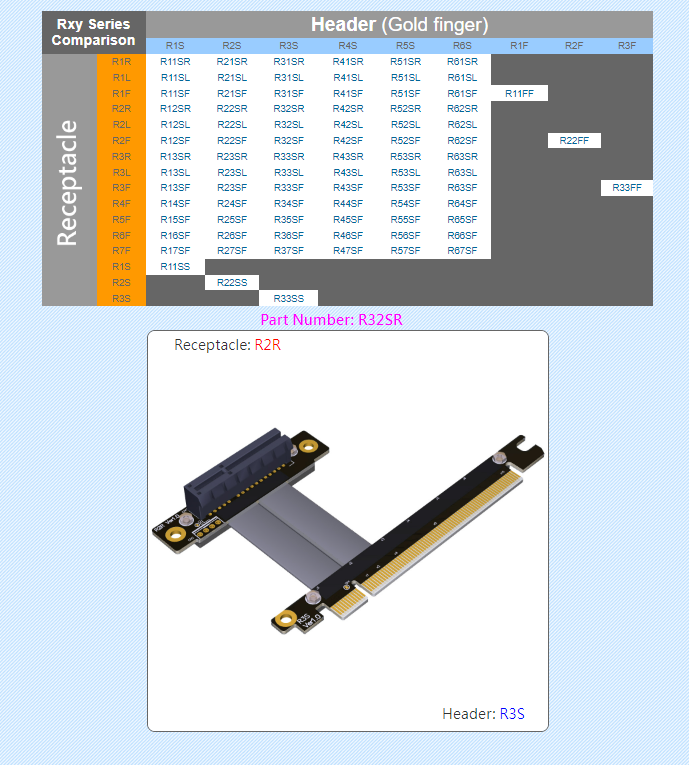

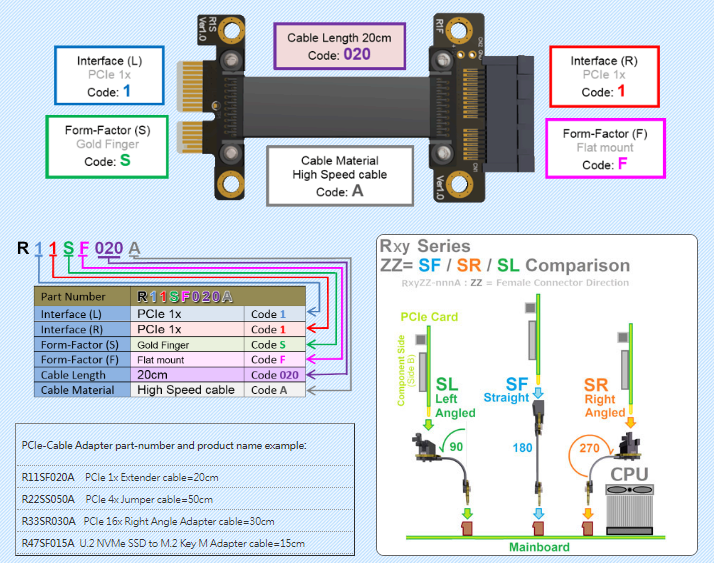

Customized Rxy Series Extender Board

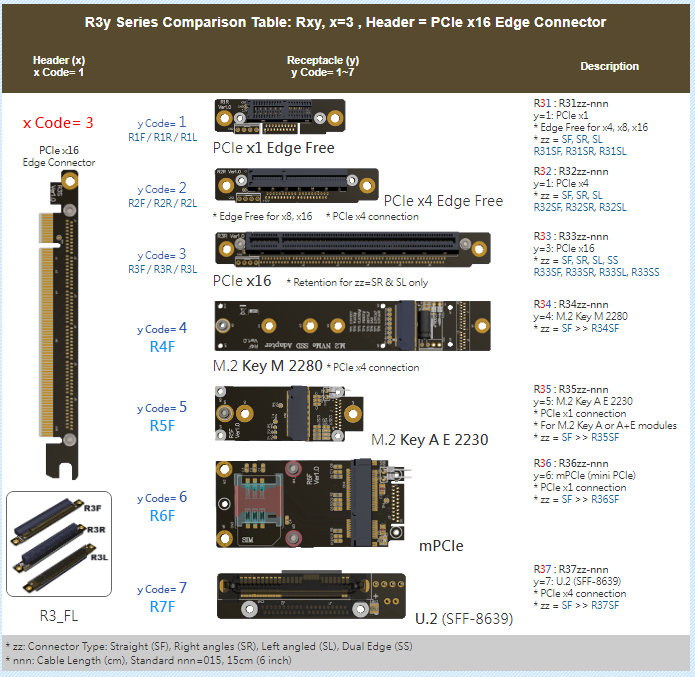

Series Product # Header (x) =1~7 Receptacle (y) = 1~7
R1y R1yzz-nnn 1: PCIe x1 1: PCIe x1 Edge Free for x4, x8, x16

2: PCIe x4 Edge Free for x8, x16

3: PCIe x16

4: M.2 Key M

5: M.2 Key A+E

6: mPCIe (mini PCIe)

7: U.2 (SFF-8639)
R2y R2yzz-nnn 2: PCIe x4
R3y R3yzz-nnn 3: PCIe x16
R4y R4yzz-nnn 4: M.2 Key M
R5y R5yzz-nnn 5: M.2 Key A+E
R6y R6yzz-nnn 6: mPCIe (mini PCIe)
R7y R7yzz-nnn 7: U.2 (SFF-8639)
