U3M2B (M.2 SATA SSD to USB3.0 Adapter)

Introduction:

U3M2B is M.2 SATA SSD to USB3.0 adapter design for PCI-SIG M.2 SATA SSD mobile solution. This adapter is allow to use M.2 SATA SSD 2242 / 2260 / 2280 module with KeyB or B+M through USB3.0 port on your desktop or laptop.

DevSlp (Device Sleep) is supported to save power consumption especially in idle mode.

Function

• Allows user to use standard SATA3 M.2 SATA SSD to USB3.0 port in the Desktop or Laptop
• Compatible with 2240, 2260, 2280 (XXYY: XXmm width, YYmm length) dimension size of M.2 SATA SSD Module with KeyB or KeyB+M.
• Active LED
• Support Hi-Speed USB 3.0(5Gbps), SATA3(6Gbps) mass storage interface.
• Support UASP function on Windows 8
• DevSlp (Device Sleep) Supported

Dimension & Weight

• 98.5mm X 37.5mm X 10m  ; 23.5g (No SSD included)

System Requirements

• Windows XP/Vista/7/8/8.1/Server 2008, Linux, Mac iOS

Certification

• RoHS

Operating Temperature

• 0 ~ 70℃

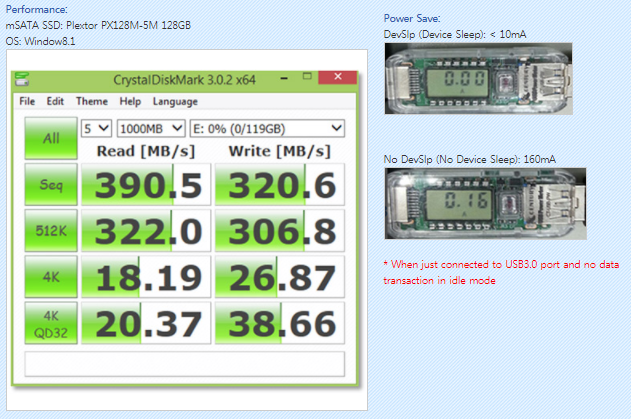

Power Save:

DevSlp (Device Sleep): < 10mA

No DevSlp (No Device Sleep): 160mA


* When just connected to USB3.0 port and no data transaction in idle mode
