WPEA-121N 802.11a/b/g/n Half Mini PCIe Module, Atheros AR9382, 2T2R

‧ Reference Design: HB116
‧ Standard: 802.11a/b/g/n Mini Card
‧ Interface: Mini PCI-E
‧ Chipset: Atheros AR9382
‧ Antenna: 2 x U.FL connectors, 2T2R
‧ Data rate up to 300Mbps
‧ Enhanced wireless security: 64/128-bits WEP, WPA, WPA2
‧ Support Windows XP/7/8.1/10, Linux, Android by request

Superior Performance with Longer Range

SparkLAN WPEA-121N WiFi PCI express card, embedded with Atheros AR9382 chipset, is incorporated with Atheros XSPAN with Signal Sustain Technology (SST). The 11n Daul-Band PCIe supports 2T2R (2-stream) MIMO technology, which delivers superior throughput up to 300Mbps and improves the overall WiFi coverage area.

Ideal for High-End Notebook
The module adopts the latest 802.11n Dual-Band technology (2.4GHz and 5GHz). It targets enterprise and high-end consumer notebooks. The solution enables up to 6 times the throughput of 802.11a/g solutions.

Industry-Leading Power Efficiency
WPEA-121N, featuring Atheros’ highest level of 802.11n WLAN throughput, enables a high performance, cost effective, low power, and compact solution for developers to easily integrate with embedded computing platforms.

Standard
802.11a/b/g/n
Chipset
Mac/BB/RF	Atheros AR9382
Host Interface
PCI Express
Radio
Antenna	2 x U.FL connectors, 2T2R
Operating Frequency	802.11b/g/n ISM Band: 2.412 ~ 2.4835 GHz 802.11a ISM Band: 5.15 ~ 5.85 GHz *subject to local regulations
Modulation	802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11a/g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
Output Power	802.11a: 12dBm ± 2dBm 802.11b: 17dBm ± 2dBm 802.11g: 16dBm ± 2dBm 802.11an (HT20): 12dBm ± 2dBm@MCS7 802.11an (HT40): 11dBm ± 2dBm@MCS7 802.11gn (HT20): 15dBm ± 2dBm@MCS7 802.11gn (HT40): 14dBm ± 2dBm@MCS7
Receive Sensitivity	802.11a: ≤ -76dBm@54Mbps 802.11b: ≤ -85dBm@11Mbps 802.11g: ≤ -76dBm@54Mbps 802.11gn (HT20): ≤ -75dBm@MCS7 802.11gn (HT40): ≤ -72dBm@MCS7 802.11an (HT20): ≤ -74dBm@MCS7 802.11an (HT40): ≤ -71dBm@MCS7
Power consumption
Continue TX	600mA
Continue RX	237mA
Operating Voltage
DC 3.3V ± 10% I/O supply voltage
Environmental
Temperature Range	0 ~ 75°C (Operating) -40 ~ 85°C (Storing)
Humidity (Non-Condensing)	5 ~ 90% (Operating) 5 ~ 95% (Storing)

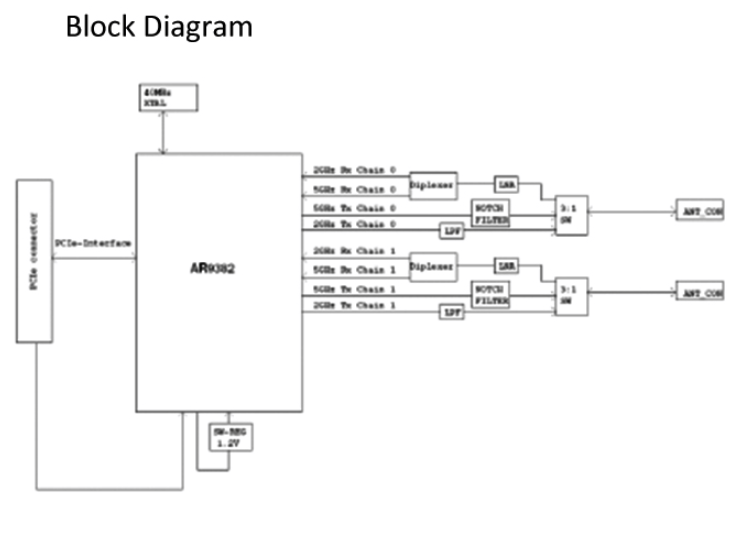

Physical Specification

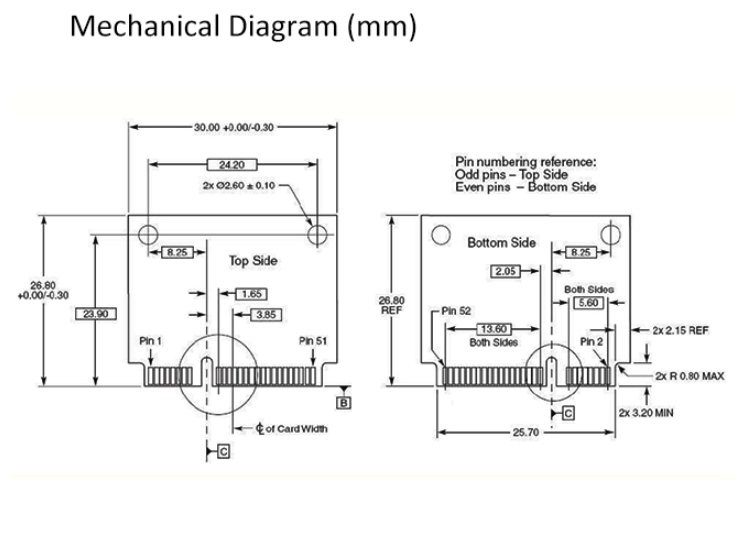

Dimensions	30mm x 26.8mm x 4.5mm
Weight	≤ 9g
Software
Driver	Windows XP/7/8.1/10 , Linux, Android by request
Security	64/128-bits WEP, WPA, WPA2

Document
File Name	Type	Updated	Download
WPEA-121N		2017.09.01

Driver
File Name	Type	Updated	Download
Windows 10 & Windows 7		2019.09.27
Windows XP		2019.09.27
