Product Overview
B20 Series (Micro SIM to SIM Card Extender) |
Introduction:
B20 V1.1 Micro SIM card Extender is a debug and test tool especially for iPhone4,
iPhone4S iPad2 and New iPad (3rd Generation). Design the FPC cable for flexible use. It allows a Micro SIM Card to be extended from the host slot for SIM interface. As thickness of FPC is 0.1mm, KZ-B20 can be routed through narrow slit between body and cover case. It’s especially designed to save valuable labor and time in the production environment. The SIM extender is designed to minimize the signal degradation effects of the extender by proven design techniques. It’s also a powerful tool for engineers,or use for mobile phone SIM test protection. |

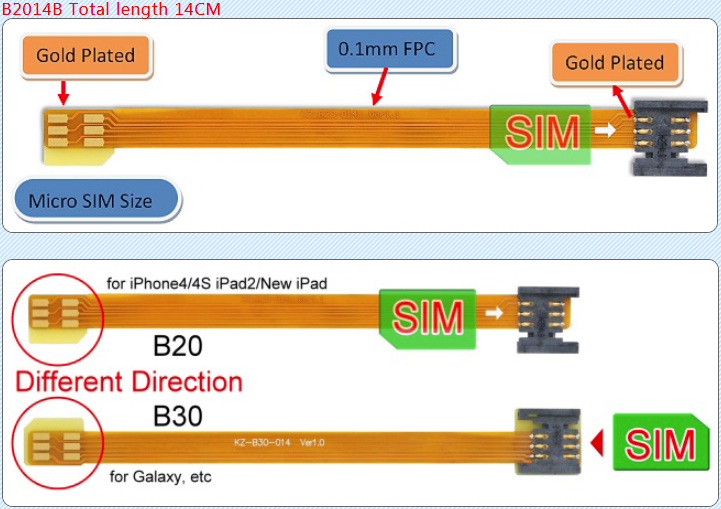

B2014B Total length 14CM |
|
![]() |
|
![]() |
![]() |
B2014B (Old P/N: KZ-B20-L14) Package Contents Unit price: US$ 24 |
|
B2014B (Old P/N: KZ-B20-L14) (micro SIM to SIM Card Extender) x1 |

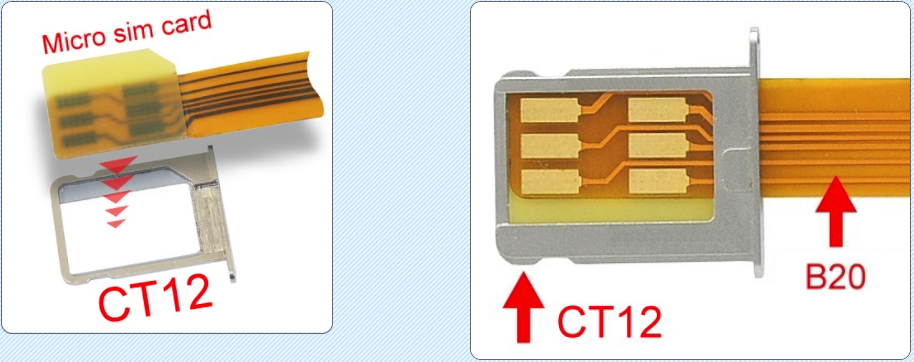

B2014B-CT12 (Old P/N: KZ-B20-L14-CT12) Package Contents Unit price: US$ 29 |
|
B2014B-CT12 (Old P/N: KZ-B20-L14-CT12)
|
CT12
|
Documents Download | |||
Brief V1.1 | ![]() |
![]() |
![]() |
Brief V1.0 | ![]() |
![]() |
![]() |
B2014B Dimension | ![]() |
![]() |
![]() |
B2014B 3D Model | ![]() |
![]() |
![]() |
B2040A 3D Model | ![]() |
![]() |
![]() |
Schematic | ![]() |
![]() |
![]() |
Selection Guide | ![]() |
![]() |
![]() |
