Product Overview

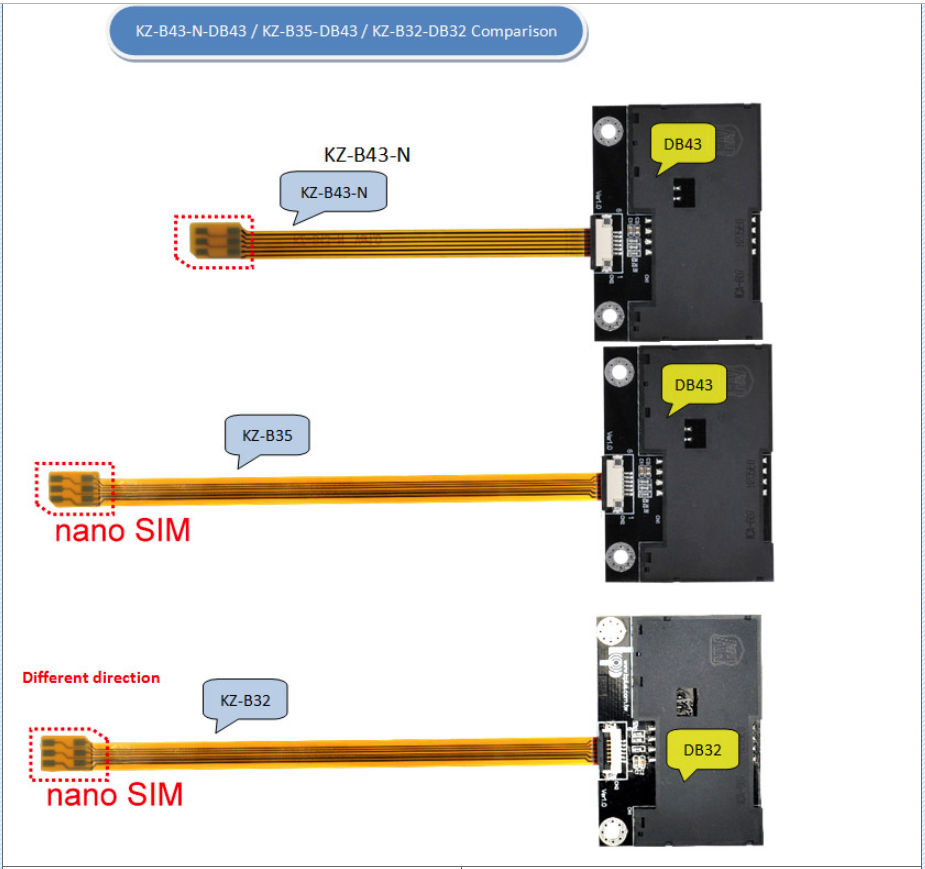

B35 Series (Nano SIM to SIM Card Extender) |

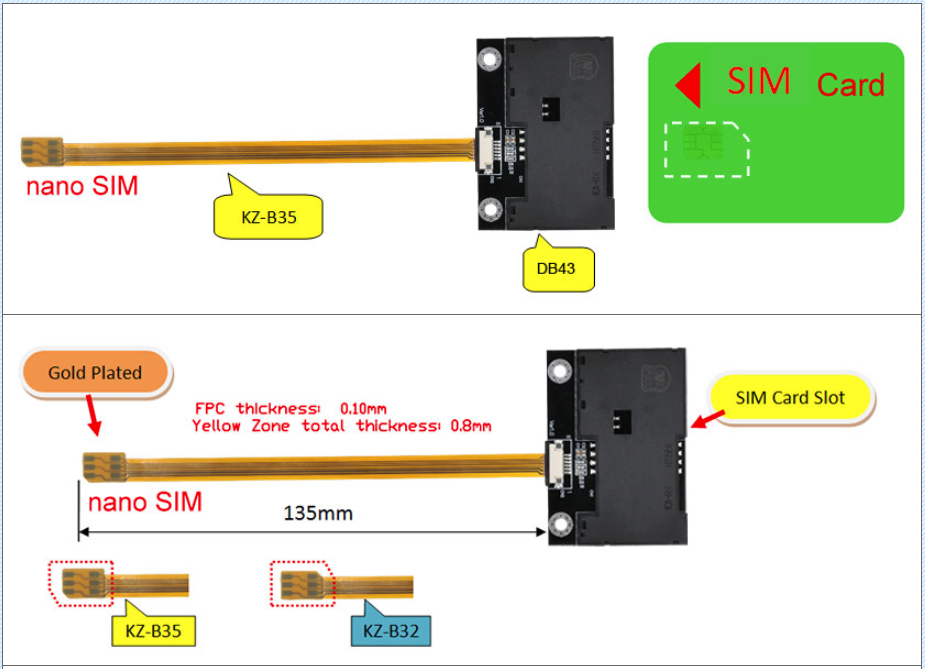

Introduction: B3514A-DB43 nano SIM to SmartCard Extender is a debug and test tool especially for mobile phone.Design the FPC cable for flexible use. It allows a nanoSIM Card to be extended from the host slot for SmartCard interface. As thickness of FPC is 0.1mm, B3514A-DB43 can be routed through narrow slit between body and cover case. It’s especially designed to save valuable labor and time in the production environment with test pads for SIM card signals. The SIM extender is designed to minimize the signal degradation effects of the extender by proven design techniques.
It’s also a powerful tool for engineers, or use for mobile phone SIM test protection. |
Documents Download | |||
Brief (PDF): | Taiwan | Taiwan 2 Mirror | China Mirror |
Dimension (PDF): | Taiwan | Taiwan 2 Mirror | China Mirror |
Schematic (PDF): | Tawan | Taiwan 2 Mirror | China Mirror |
Selection Guide | Tawan | Taiwan 2 Mirror | China Mirro |
