Name: DP8206 (PCIE X8 GEN4 TO M.2 NVME SSD DUAL PORT)
SKU: 882
Availability: OutOfStock

Description

M.2 NVMe to PCI Express 4.0 conver
Built-in two M.2 M-key Females connector

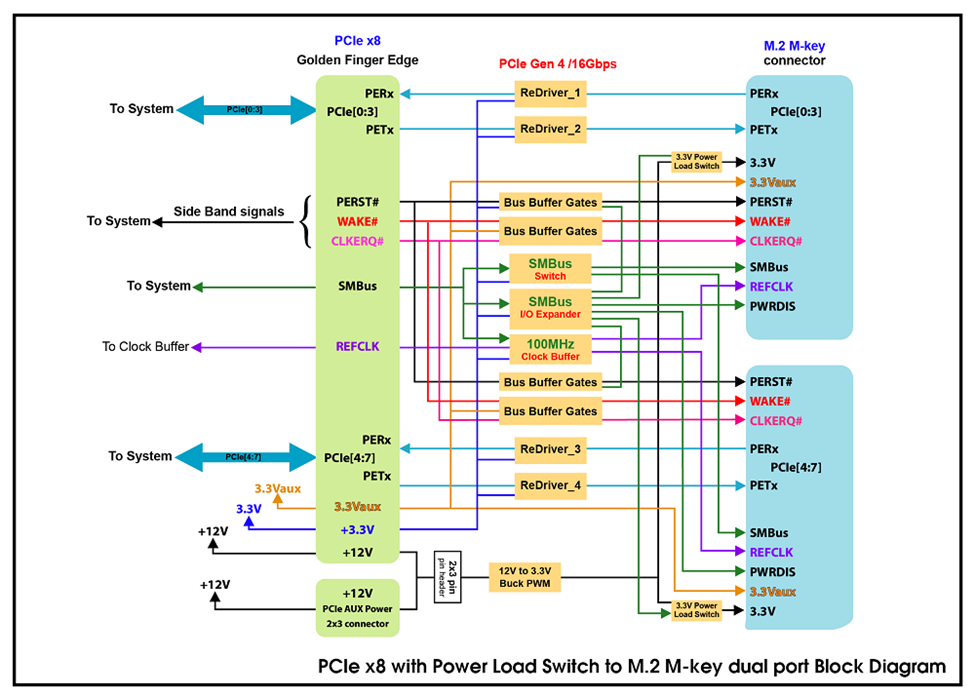

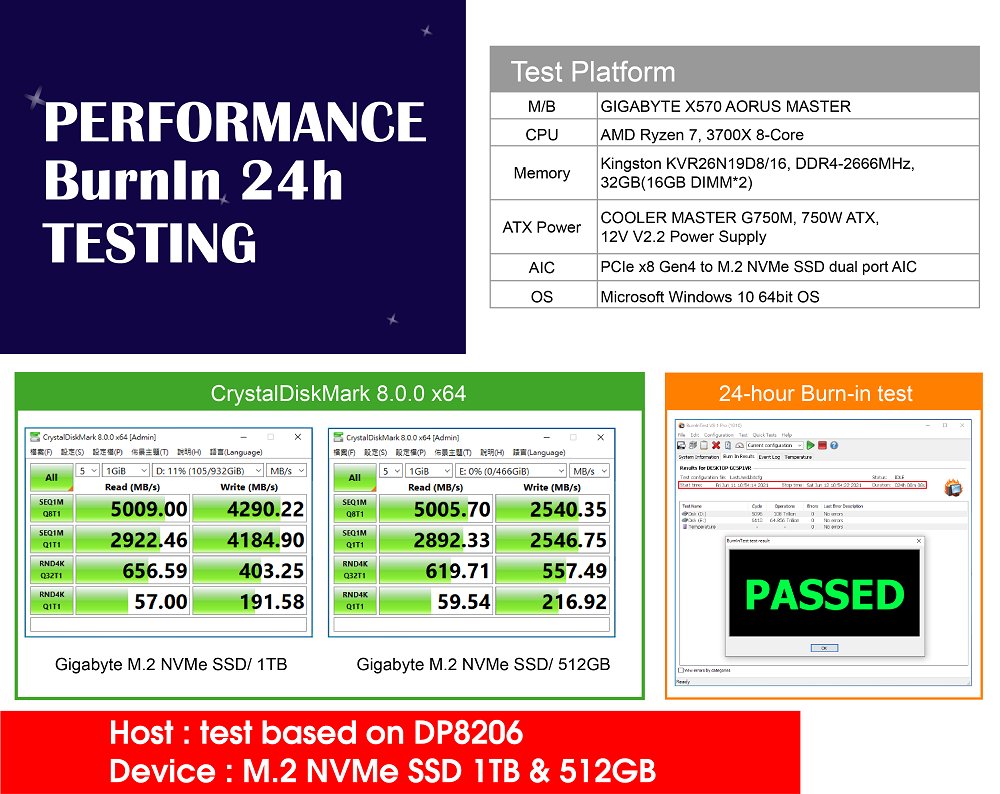

DP8206 can be offered in two x4 data link width configurations (need CPU and BIOS both support) for dual port M.2 connector.
Supports power input from PCIe CEM +12V or external PCIe 12V AUX Power
Supports Server BMC management
Built-in SMBus Switch(Address: 0xE2) for M.2 SSD SMBus, Clock buffer SMBus communication
Built-in SMBus I/O Expander(Address: 0x40) for M.2 PWRDIS control
Supports PCIe PERST# for OOB(out of band) management to remote M.2 SSD Reset
Supports 3.3V Power Rail for OOB(out of band) management to disable M.2 SSD Power
Supports PCIe REFCLK Buffer fan out(Address: 0xD8) for M.2 dual port, it shall be buffered and fanned out to the individaul M.2 module
Built-in WAKE# Auto-Direction Sensing Between PCIe CEM and M.2 SSD
Built-in CLKREQ# Auto-Direction Sensing Between PCIe CEM and M.2 SSD
PWM synchronous buck converter Power IC
◆8A maximum output current
◆Short circuit protection
◆ln-rush current suppression
◆Thermal shutdown protection
◆ESD HBM (Human Body Mode)/2KV
Each M.2 port is with 5A current Load switch Power to protect M.2 NVMe SSD
LED1, LED3 Green LED on indicates M.2 NVMe SSD power ready
LED2, LED4 RED LED Blinking indicates M.2 SSD active status


DP8206 (PCIE X8 GEN4 TO M.2 NVME SSD DUAL PORT)
