DP8503 (PCIE X8 WITH REDRIVER TO GEN-Z 1C(EDSFF) DUAL PORT)

DP8503 (PCIE X8 WITH REDRIVER TO GEN-Z 1C(EDSFF) DUAL PORT)

Contact support@mfactors.com to order
Unavailable
Current Stock:Only left:

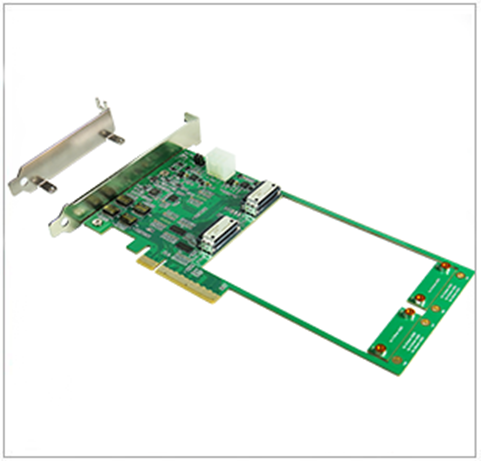

Description

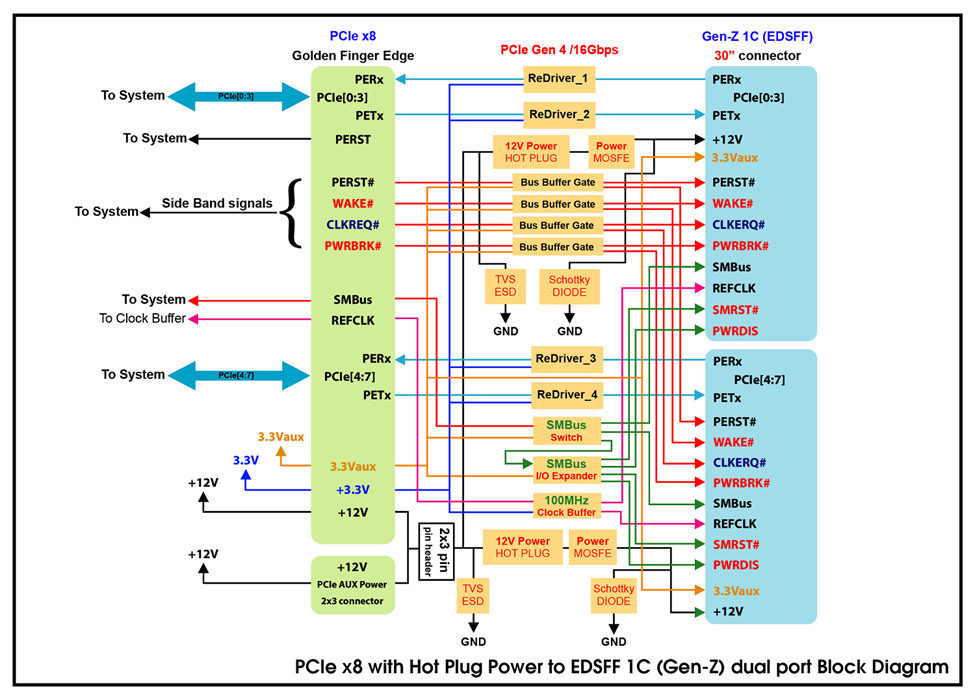

  • PCIe x8 can be bifurcated to Gen-Z 1C (EDSFF) dual port

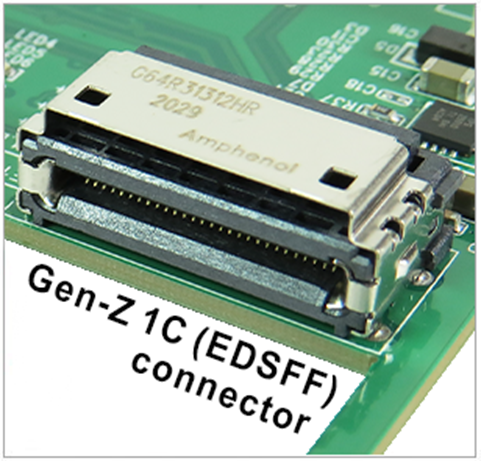

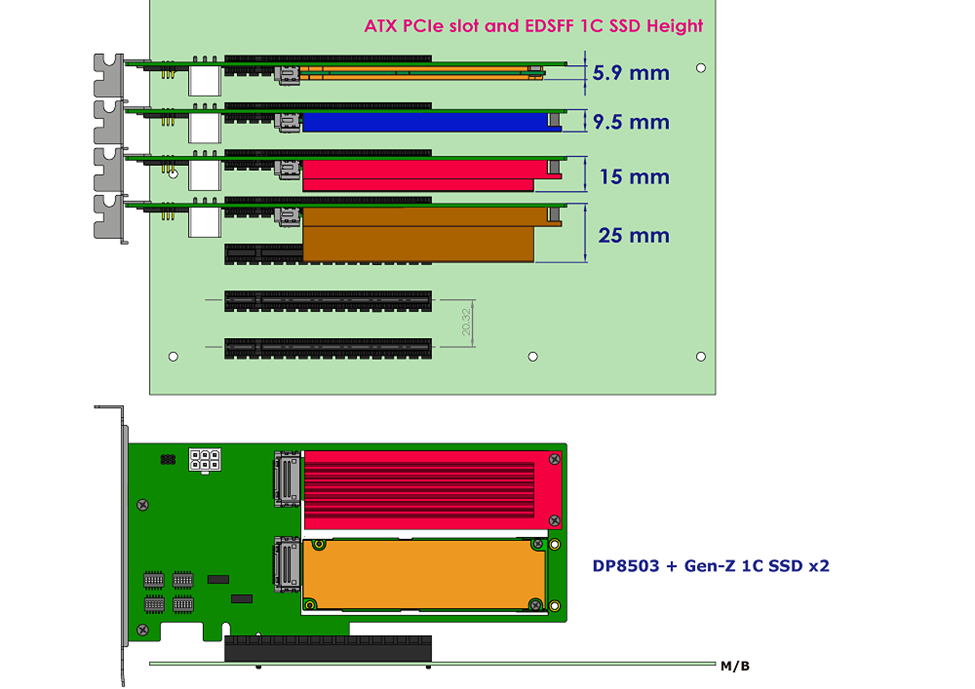

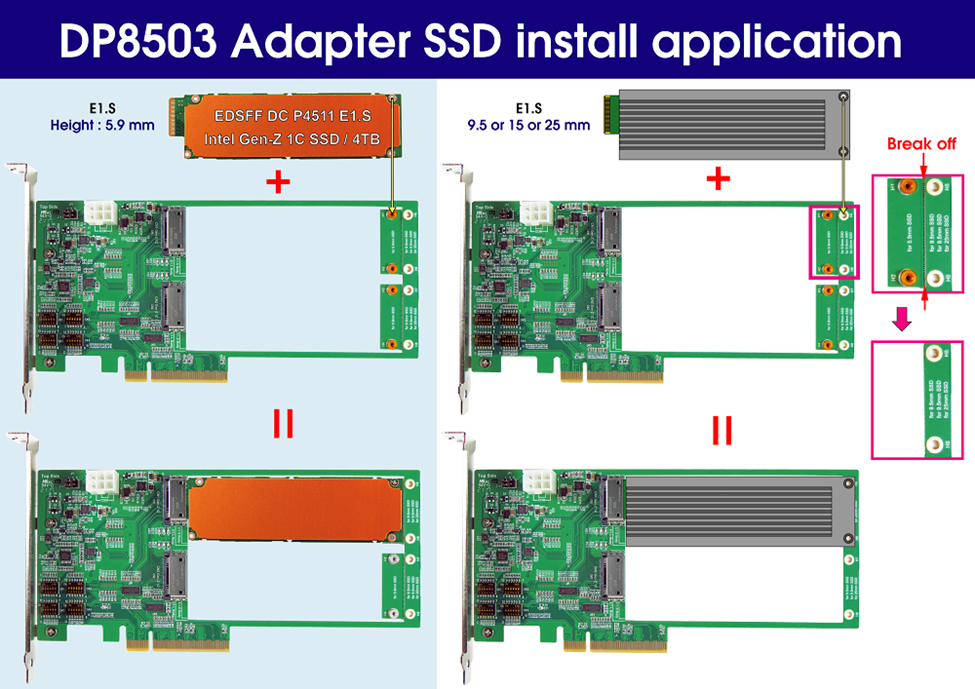

  • Built- in EDSFF 1C with latch connector

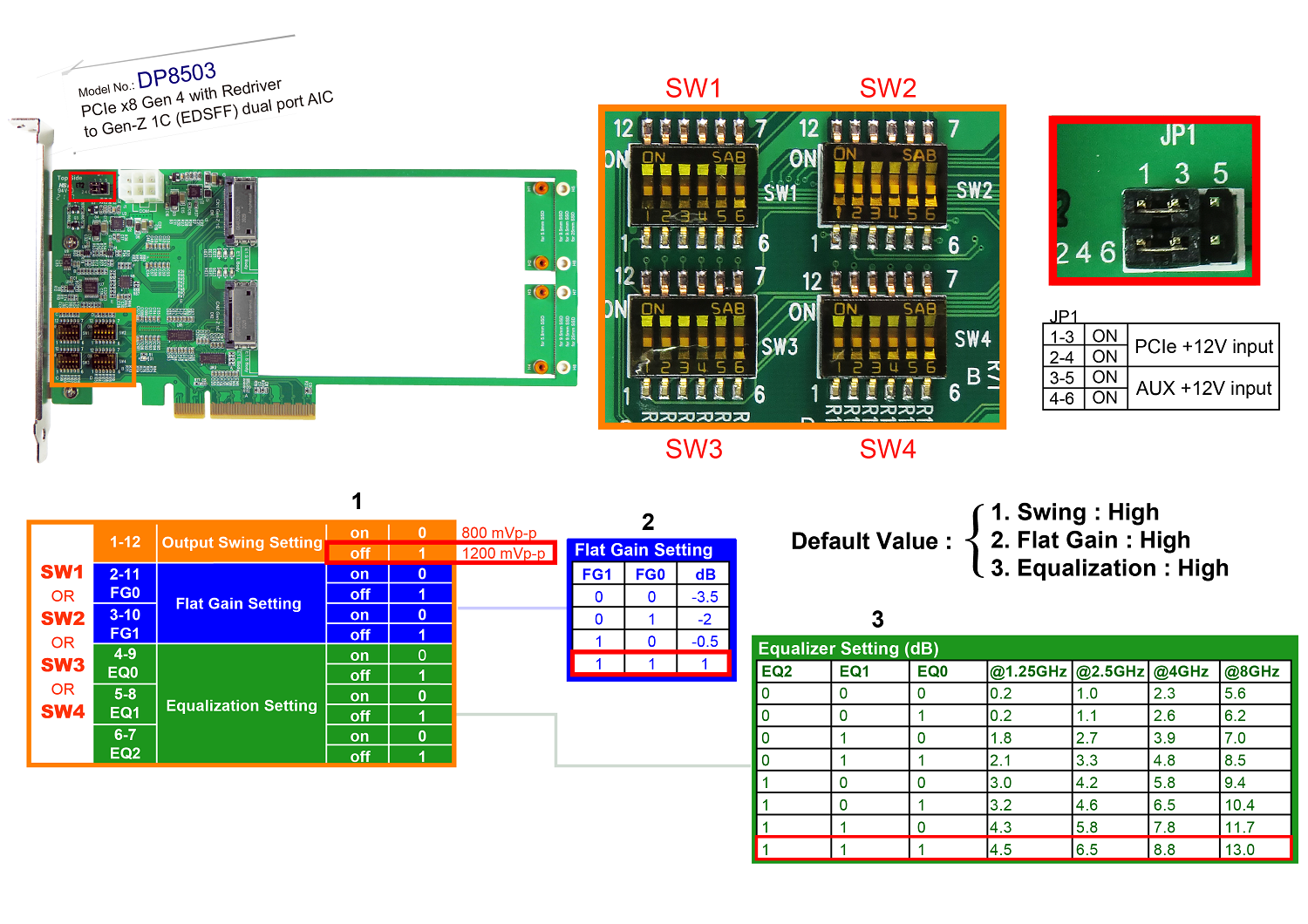

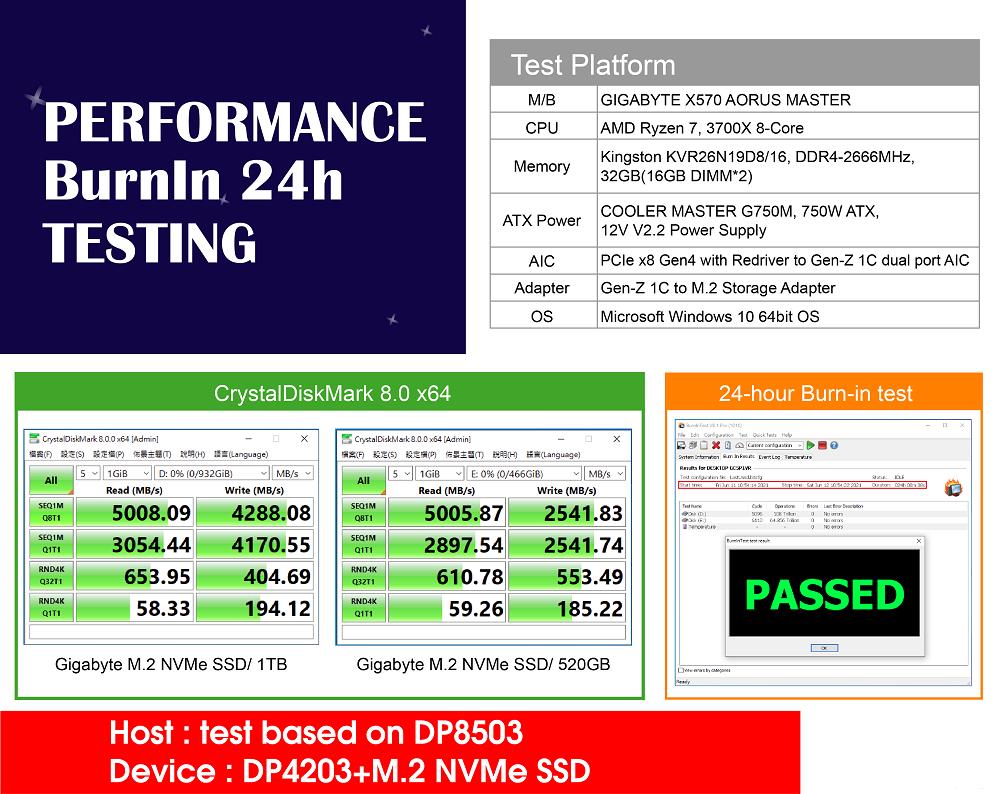

  • Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
  • Built- in 100MHz Clock buffer to drive longer trace lengths and longer cable
  • Built- in SMBus Switch with Reset Function(Address: 0xE2)
  • Built- in SMBUS I/O Expander(Fixed Address: 0x41)
  • Built- in PERST# Bus Buffer with Open-Drain output to be used over longer trace lengths and over longer cable
  • Built- in WAKE# Bus Buffer with Open-Drain output to be used over longer trace lengths and over longer cable
  • Built- in CLKREQ# Bus Buffer with Open-Drain output to be used over longer trace lengths and longer over cable
  • Built- in PWRBRK# Bus Buffer with Open-Drain output to be used over longer trace lengths and longer over cable
