DP8507 (PCIE X8  WITH REDRIVER TO GEN-Z 2C AIC)

DP8507 (PCIE X8  WITH REDRIVER TO GEN-Z 2C AIC)
DP8507 (PCIE X8  WITH REDRIVER TO GEN-Z 2C AIC)
DP8507 (PCIE X8  WITH REDRIVER TO GEN-Z 2C AIC)
DP8507 (PCIE X8  WITH REDRIVER TO GEN-Z 2C AIC)
DP8507 (PCIE X8  WITH REDRIVER TO GEN-Z 2C AIC)
DP8507 (PCIE X8  WITH REDRIVER TO GEN-Z 2C AIC)
DP8507 (PCIE X8  WITH REDRIVER TO GEN-Z 2C AIC)
DP8507 (PCIE X8  WITH REDRIVER TO GEN-Z 2C AIC)

DP8507 (PCIE X8  WITH REDRIVER TO GEN-Z 2C AIC)

Contact support@mfactors.com to order
Unavailable
Current Stock:Only left:

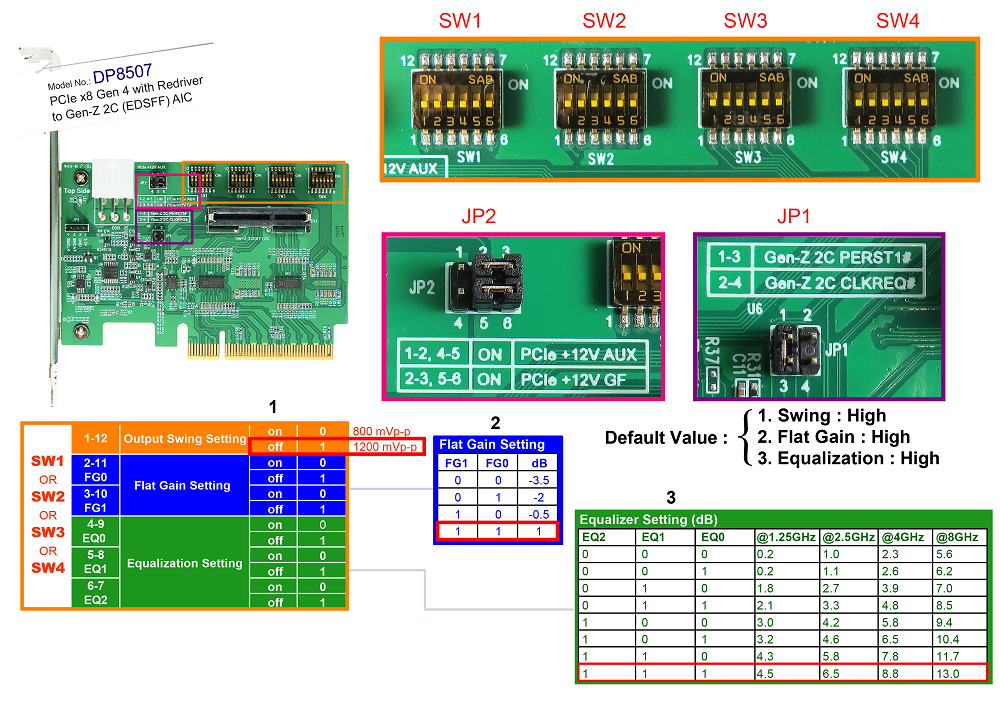

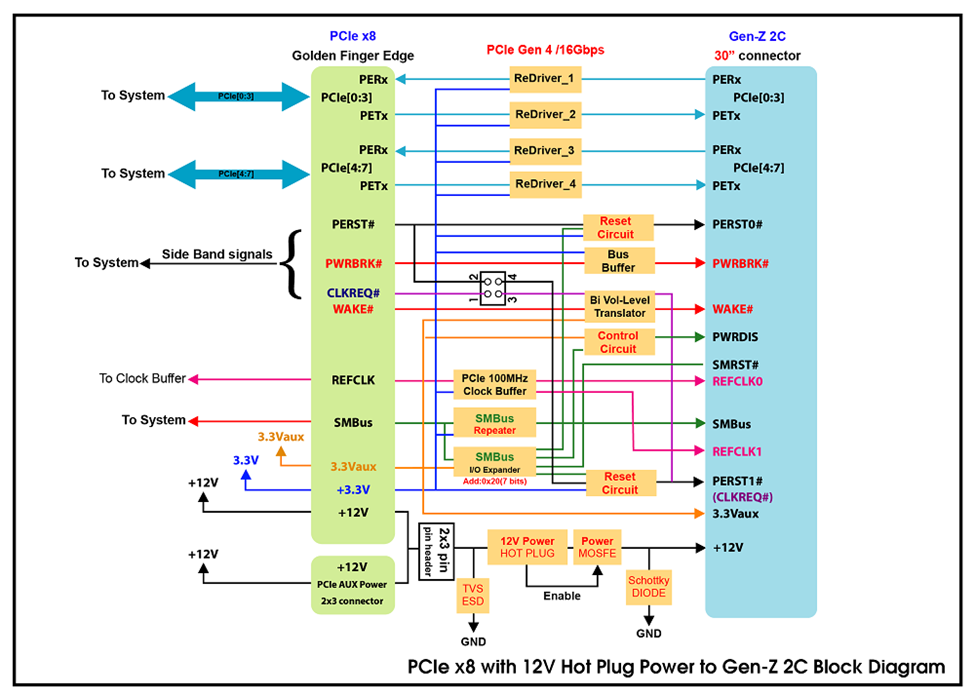

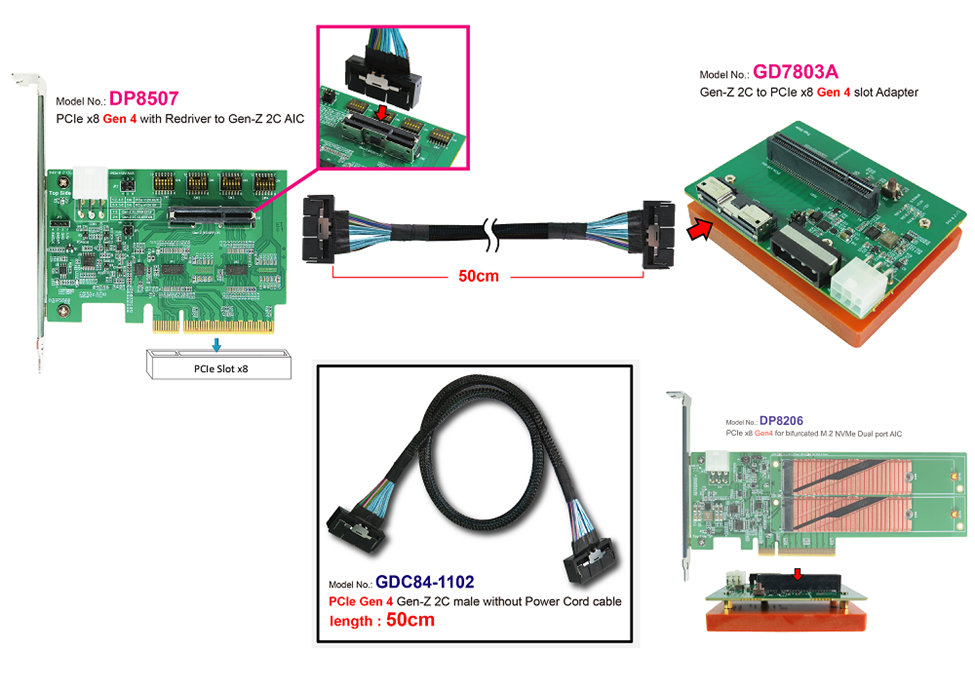

Description
  • Supports Server BMC management
  • Supports Industrial Grade temerature range
  • The card should be compliant with PCIe 4.0 CEM spec
  • Built- in EDSFF 2C with latch connector
  • Built- in PCIe ReDriver to extend PCIe Gen4, 8-Lane data width link signals
  • Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable, Address: 0x6C(7 bits) for BMC management
  • Built- in SMBus I/O Expander, Address: 0x21(7 bits) for Gen-Z 2C PWRDIS control
  • Supports PCIe PERST0# for OOB(out of band) management to remote Gen-Z 2C Reset
  • Supports PCIe PERST1# for OOB(out of band) management to remote Gen-Z 2C Reset
  • Built- in WAKE# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and over longer cable - Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • Built- in CLKREQ# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and longer over cable - Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • Built- in PWRBRK# Bus Buffer with Open-Drain output to be used over longer trace lengths and longer over cable
  • Built-in 12V Hot Plug Power with eFuse protection for Gen-Z 2C
  • Programmable Current Limit: 6.5A
  • Programmable Inrush Current Slew Rate
  • Thermal shutdown protection and fault alert
  • Back-to-Back (B2B) FET Operation
  • Built-in 12V input with 400W TVS(TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
  • Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32 m ohm
  • Built-in 12V output with SCHOTTKY BARRIER Power Rectifier
