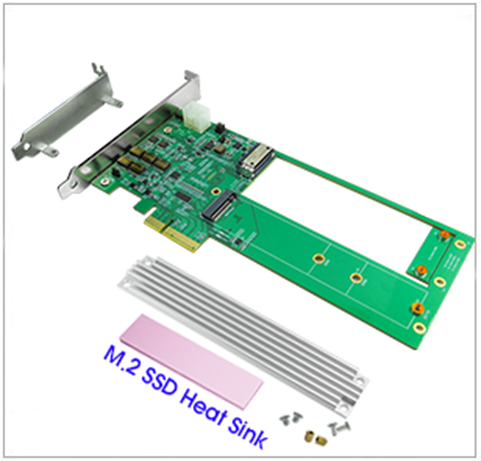

Name: DP9007 (PCIE X4 WITH REDRIVER TO M.2 & GEN-Z 1C(EDSFF) AIC)
SKU: 864
Availability: OutOfStock

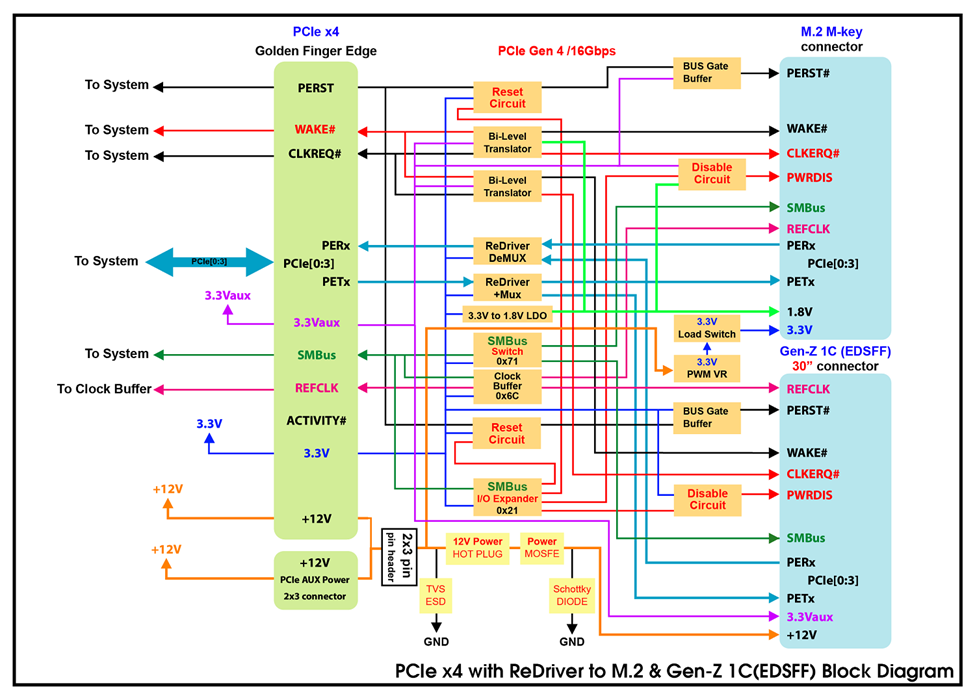

Description

Gen-Z 1C (EDSFF) to PCI Express 4.0 x4 convert

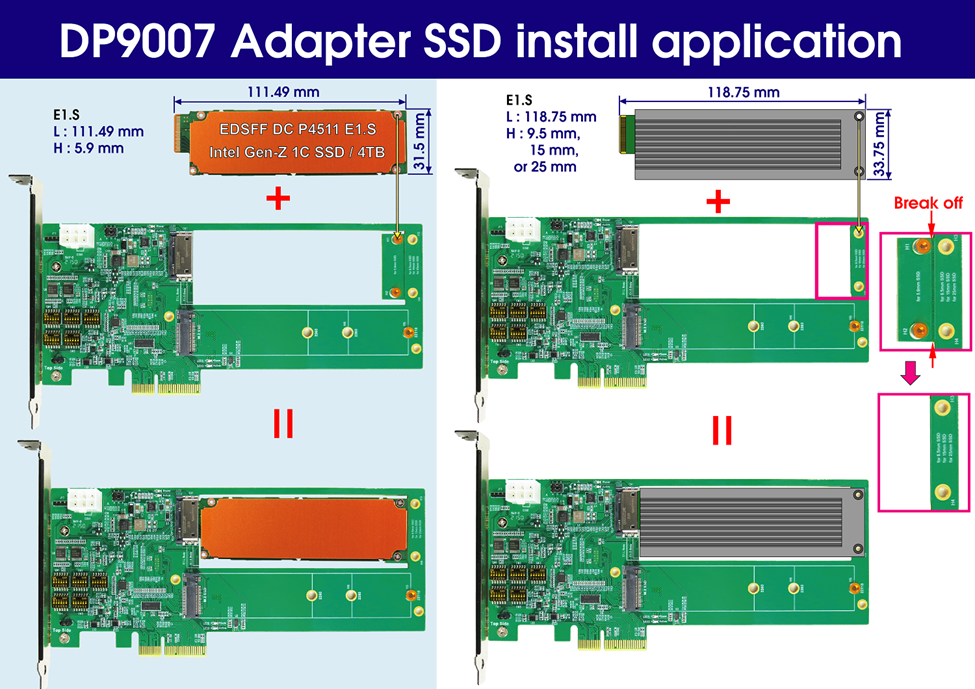

Gen-Z 1C (EDSFF) or M.2 M-key to PCIe 4.0 x4 convert, two choose one
Built- in EDSFF 1C with latch connector
Built- in M.2 M-key connector
Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
The controller with its CTLE set to the maximum gain to 17 dB boost
Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable with SMBus (Address: 0x6C/7 bits) for BMC & IPMI control
Built- in SMBus Switch with Reset Function(Address: 0x71/7 bits) for Gen-Z 1C & M.2 SMBus
Built- in SMBus I/O Expander(Address: 0x21/7 bits)
For EDSFF PWRDIS, SMBRST# control
For M.2 PWRDIS control
PCIe PERST# for OOB(Out Of Band) management to remote Gen-Z & M.2 Reset
Control Gen-Z 12V enable or disable
Control M.2 3.3V enable or disable
Built- in PCIe PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
Built- in PCIe WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
Built- in PCIe CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
