INTRODUCTION

M770 U.2 / U.3 Solid State Disk (SSD) delivers all the advantages of flash disk technology with PCIe Gen4x4 interface, including being fully compliant with standard U.2/U.3 form factor, providing low power consumption compared to traditional hard drive and hot-swapping when removing/replacing/upgrading flash disks.

M770 series offers a wide range of capacities up to 30,720GB and its performance can reach up to 7000MB/s (for sequential read) and 6800MB/s (for sequential write) based on 3D TLC NAND flash with the DDR4. Moreover, the power consumption of M770 U.2/U.3 SSD is much lower than traditional hard drives, making it the best embedded solution for new platforms.

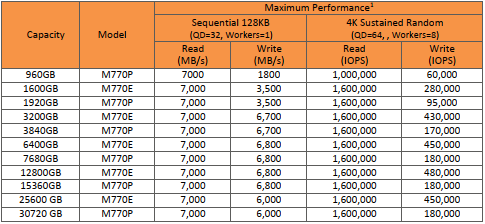

Performance

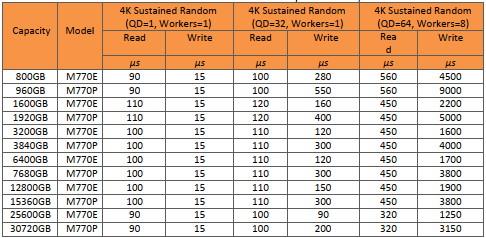

Latency

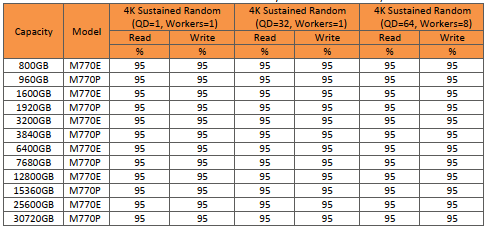

IOPS Consistency

Power Consumption

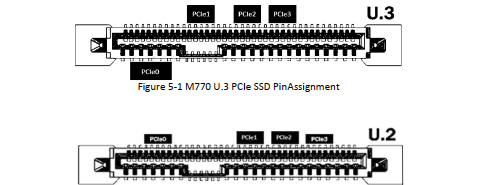

INTERFACE : PCIe U.3 and U.2

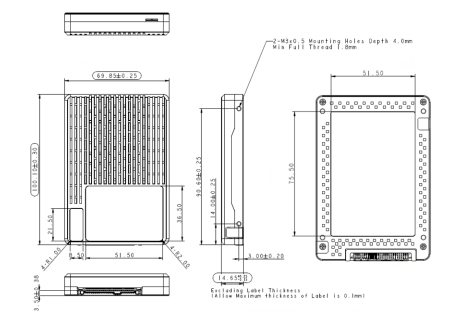

PHYSICAL DIMENSION
