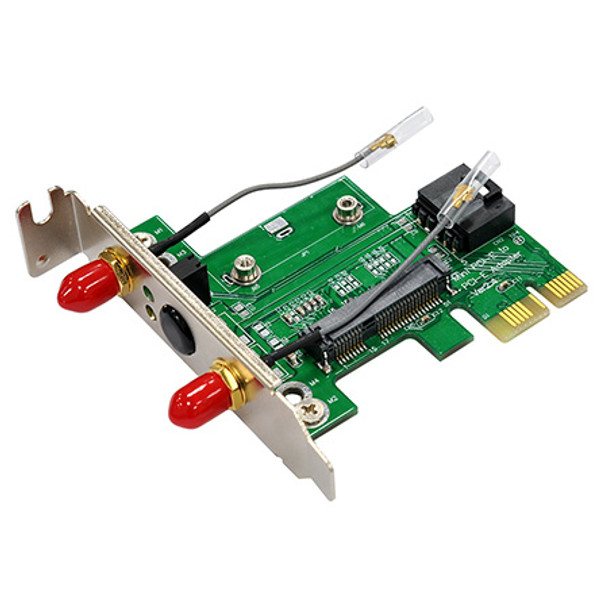

MP2H-632450 (mPCIe to PCIe Adapter with Intel Centrino Ultimate-N 6300)

Introduction:

The MP2H-632450 is PCIe 1x add-in card adapter with Intel® Centrino® Ultimate-N 6300. Family of IEEE 802.11a/b/g/n wireless network adapters for your PCI Express-enabled desktop computer. Operate in both the 2.4 GHz and 5.0 GHz spectra. These adapters, available in PCIe* Mini Card form factor deliver up to 450 Mbps of bandwidth via features such as MIMO technology, Up to 2X greater range, and Packet Aggregation.

Specification

• PCI Express Mini Card to PCI Express adapter.
• Standard Height PCI Express1x Add-in Card
• Low Profile PCI Express Add-in Card.
• Wireless access LED, POWER LED
• Dual Band 2.4G 2dBi and 5.8G 5dBi rubber duck antenna
• U.FL/IPX to RP-SMA pigtail WiFi RF cable adapter
• IEEE WLAN Standard 802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h
• Up to 450 Mbps of bandwidth
• CE/FCC certifications
• Intel Centrino® Ultimate-N 6300 brief download
• DRIVER download(http://downloadcenter.intel.com)
• Operating Systems: Microsoft Windows XP 32/64-bit, Microsoft Windows Vista 32/64-bit, Microsoft Windows 7 32/64-bit, Ubuntu Linux

Notice

• No driver CD accompanied.
• Make sure you download and install the proper driver before you install the adapter.
• On-board diversity support for systems designed with three antennas
