Product Overview
M2MP3-E (M.2 (NGFF) to mPCIe (PCIe+USB) adapter)
First Impression
- (Name) : M2MP3
- (Summary) : M.2 (NGFF) to mPCIe (PCIe+USB) adapter
- (Interface): mPCIe side: PCIe + USB
- M.2 (NGFF) side :Second PCIe Lane Socket 1 , Key E
- (Application) :  Intel® 17265 , 18260 , Atheros® W0096
Function

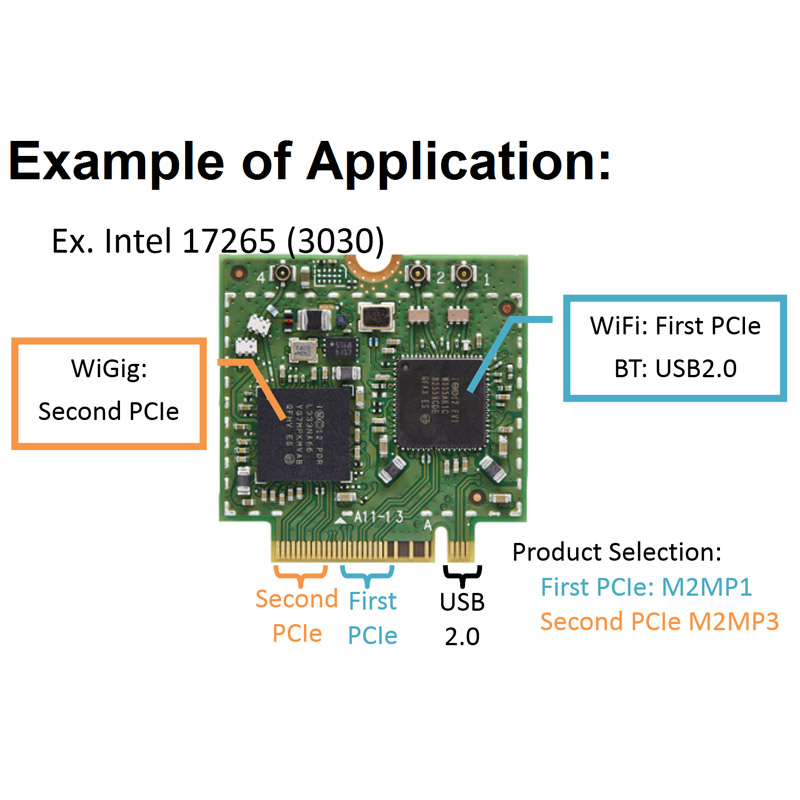

- Allows user to use Second PCIe lane of M.2 Socket 1 Module to mPCIe Slot in the Desktop or Laptop.
- Supports system bus interface: PCIe & USB2.0.
- Supports USB interface of M.2 Card such as Bluetooth, 4G, LTE, 3G,CDMA, WWAN, HSPA, GPS, WiMAX.
- Supports PCIe : 60 GHz WiGig (802.11ad) wireless application
* Most of WiGig devices are supported by second PCIe lane. - No drivers needed for this M.2 to mini PCI-E Card Adapter
Specifications
- M.2 Specification Revision 1.0
- PCI Express base Specification 1.1 (Up to 2.5Gpbs)
- USB Specification Revision2.0
- Mainly Supports 2230/3030 M.2 Card
Ex. Intel 17265 , 18260 , Atheros W0096 - Supports M.2 Socket 1 with Second PCIe lane Module.
- Supports M.2 Key A/E Card Type.
- Supports Full size and half size mPCIe slot
- *Notice*: For First PCIe Lane such as IEEE WLAN 802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac application, please look for: M2MP1 series.
System Requirements
- Mini PCI-E slot
- Windows 2000, XP, Vista 32/64, Windows 7, Windows 8, Windows 10 or Linux
|
||||||||||||||||||||||||||||||||||||
|
M.2 (NGFF) to mini PCI-E Adapter comparison |
||||||
Model Name | Function | Interface | M.2 SPEC | Application | Module KEY | Support Card Type |
M2MU2 | M.2 to mPCIe | USB 2.0 | Socket 2 SSIC-based WWAN | 3G/4G/LTE module | B | 2230/2242/3030/3042 |
M2MP1 | M.2 to mPCIe | PCIe & USB2.0 | Socket 1 First PCIe Lane | wireless+BT module | A | 2230/2242/3030/3042 |
M2MP1-E | M.2 to mPCIe | PCIe & USB2.0 | Socket 1 First PCIe Lane | wireless+BT module | E | 2230/2242/3030/3042 |
M2MP3-A | M.2 to mPCIe | PCIe & USB2.0 | Socket 1 Second PCIe Lane | WiGig+BT module | A | 2230/2242/3030/3042 |
M2MP3-E | M.2 to mPCIe | PCIe & USB2.0 | Socket 1 Second PCIe Lane | WiGig+BT module | E | 2230/2242/3030/3042 |
M2MS1 | M.2 to mSATA | SATA | Socket 2 SATA-based | SATA SSD module | B / B+M | 2230/2242/3030/3042 |
