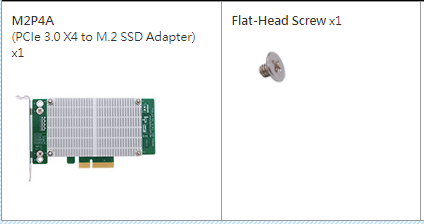

M2P4A (PCIe  X4 to M.2 (NGFF) SSD Adapter)

Introduction:

M.2 stands for Next Generation Form Factor which is invented for PCI-SIG by Intel and it is developed for flat and high-efficiency equipment such as Ultrabook™ or Tablet PCs. It is a natural transition from the Mini Card and Half Mini Card to a smaller form factor in both size and volume which supports multiple function add-in cards/modules including: Wi-Fi, Bluetooth, global navigation satellite systems, near field communication, Hybrid digital radio, wireless gigabit alliance (WiGig), wireless wide area network and solid-state storage devices. Also adds functionality to USB 3.0, display Port, SDIO and SSD-PCIe.

M2P4A adapter enables PCIe base M.2 (NGFF) SSD as a HDD Card for desktop PC.
M2P4A design for M.2 (NGFF) SSD.

Function

• Allows user to use standard PCIE base M.2 SSD to PCIe x4 in the Desktop or Laptop.
• Transparent to the operating system and does
  not require any software drivers.

Specifications

• M.2 SSD to PCIe X4 adapter.
• M.2 Specification Revision 0.9-3
• Serial ATA Spec. Reversion 3.2
• Support 2230/2242/2260/2280/22110 type M.2 Card dimension.
• Support M.2 Socket 3 PCI-e-based SSD Module.
• Support M.2 Key M Card Type.
• Heat Sink (92x57x8 mm) for SSD module.

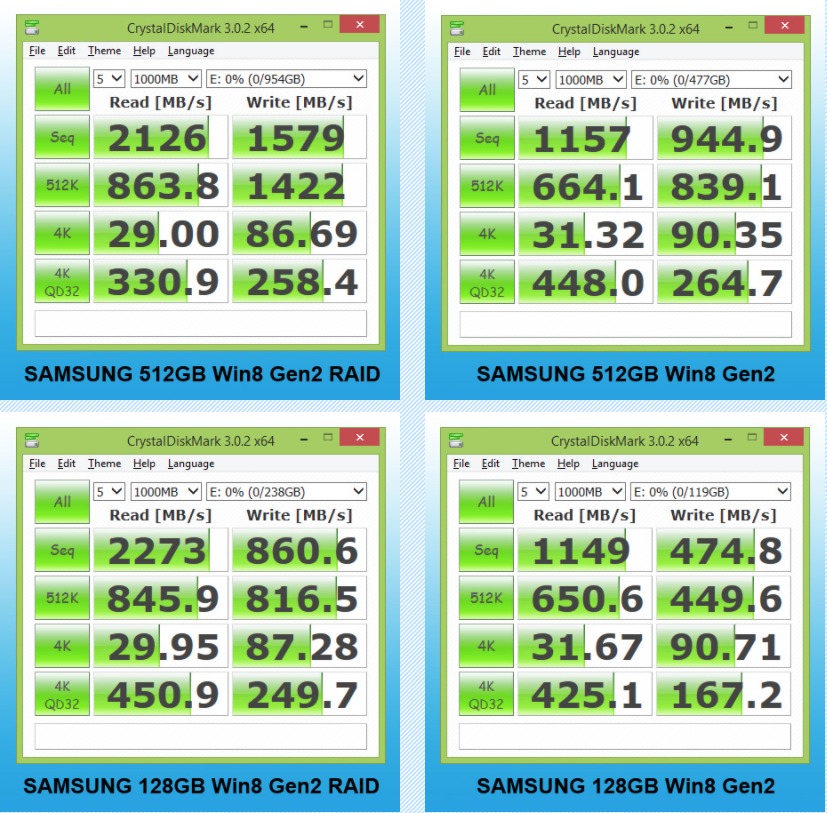

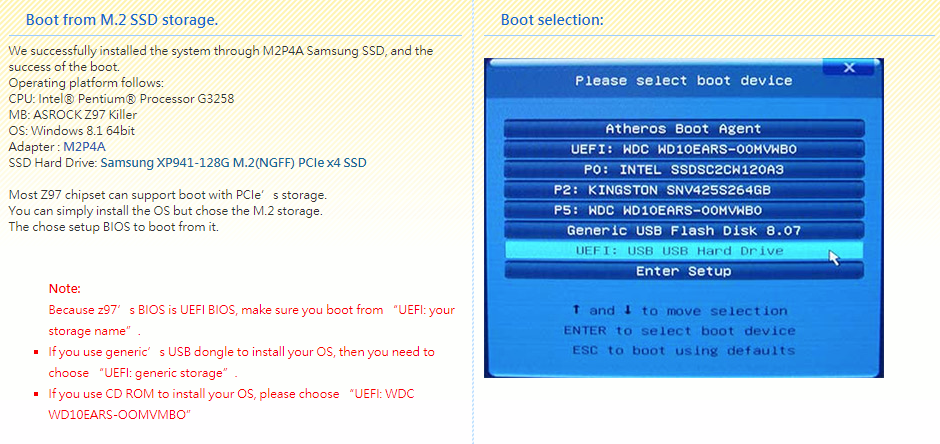

M.2 SSD to PCI-E from factor Adapter Compatibility List								2013Dec13 Gerry Chen
Brand / Model	Function	Interface	Size	M2P4A	M2P4S	M2PS		Note
Samsung XP941 MZHPU128HCGM-00000	SSD	PCIe key M	2280	Pass	Pass	NG
Samsung XP941 MZHPU256HCGL-00000	SSD	PCIe key M	2280	Pass	Pass	NG
Samsung XP941 MZHPU512HCGL-00000	SSD	PCIe key M	2280	Pass	Pass	NG
Samsung M.2 128G MZ-NPD1280	SSD	SATA key B / M	2280	NG	NG	Pass
Samsung M.2 128G MZNTD128HAGM	SSD	SATA key B / M	2280	NG	NG	Pass
BPLUS M2EM	SSD	SATA key B / M	2242	NG	NG	Pass
ADATA AXNS341N-64GM-B	SSD	SATA key B / M	2242	NG	NG	Pass
Sandisk X110	SSD	SATA key B / M	2242	NG	NG	Pass
Samsung MZNTD128HAGM	SSD	SATA key B / M	2280	NG	NG	Pass
Intel SSD Pro 1500 Series	SSD	SATA key B / M	2280 2242	NG	NG	Pass
Intel SSD 530 Series	SSD	SATA key B / M	2280	NG	NG	Pass
Tohsiba THNSNHGDNT	SSD	SATA key B / M	2280	NG	NG	Pass
LITE-ON L8T-128L6G-HP	SSD	SATA key B / M	2280	NG	NG	Pass
Brand	Function	Interface	Size	M2P4A	M2P4S	M2PS		Note
				Key M	Key M	Key B
