Product Overview
MP2S (mPCIe SSD to PATA / SATA adapter ver1.0b)
Introduction:

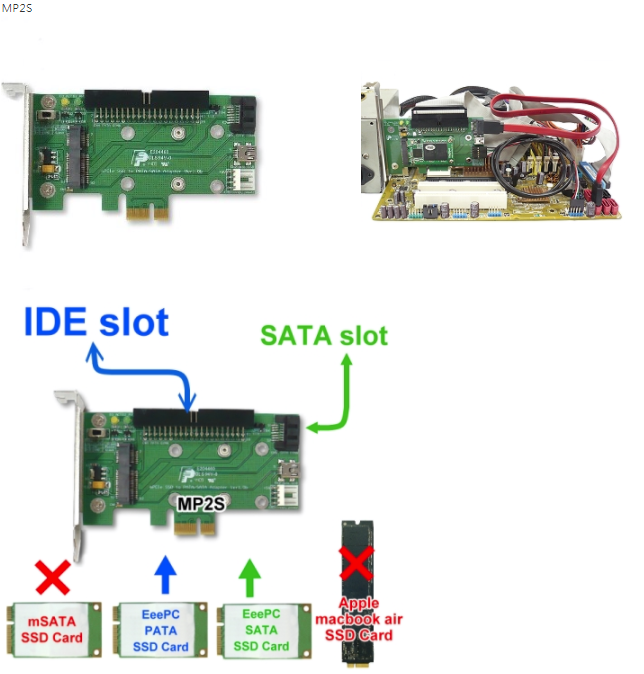

MP2S is a passive adapter designed for Desktop SSD solutions that converts custom mPCIe SSD to SATA/PATA connector on main-board.
The adapter will allow you to use mPCIe SSD card as a hard drive on your PATA/SATA motherboard.
Features
- allows user to use custom mPCIe SSD to PATA/SATA connector in the Desktop.
- Compatible with MINI PCI-E SSD Module of ASUS EEEPC.
- Support SATA and PATA interface.
- Power LED. PATA active LED.
System Requirements
- Windows 2000, XP, Vista,Windows 7, Server 2008
- Linux
Notice
The SSD module is controlled via the PATA or SATA interface to the main-board not the PCIE bus or USB port. It only requires power from the PCIE bus or USB port or Floppy connector. As a result, PCIE/USB connector existing nets on the PCB which are power connecting only.
Almost mPCIe SSD only supports master mode. Please set any other IDE devices on slave mode if you have any, such as HDD/CD-ROM.
|
MP2S
|
 |
 |
|
MP2S transmission performance test report |
|||
| Test platform description | Mother board: ASUS M2NPV-VM CPU: AMD Athton 64 X2 Dual core Procossor 3800+ 2.00GHz RAM: 1.98GB OS: Windows XP SP3 Test tool: CrystalDiskMark2.2 |
||
| Card | Driver | test size | read/write performance (Unit : MByte/sec) |
| Kingspec PATA_8GB | Microsoft 5.1.25350 | 100MB | 76.42/24.80 |
| Kingspec SATA_8GB | Microsoft 5.1.25350 | 100MB | 92.55/25.92 |
| Silicon POWER SSD PATA_16GB | Microsoft 5.1.25350 | 100MB | 37.96/13.58 |
| Kingspec PATA_32GB | Microsoft 5.1.25350 | 100MB | 74.81/34.44 |
| Kingspec PATA_64GB | Microsoft 5.1.25350 | 100MB | 81.45/45.75 |
| MP2S, SSDMA, SSDMB,SSDMC,SSDMC-U for SSD minicard comparison 2011/Apr/21 | |||||
|
Functions comparison
|
MP2S ver 1.0b
|
SSDMA
|
SSDMB
|
SSDMC
|
SSDMC-U
|
|
Interface
|
PATA / SATA
|
USB2.0
|
USB3.0
|
SATA
|
SATA
|
|
EeePC PATA SSD minicard support
|
Yes
|
Yes
|
No
|
No
|
No
|
|
EeePC SATA SSD minicard support
|
Yes
|
Yes
|
No
|
No
|
No
|
|
mini-SATA SSD minicard support
|
No
|
No
|
Yes
|
Yes
|
Yes
|
|
Access LED
|
Yes
|
Yes
|
Yes
|
No
|
No
|
|
Appearance
|
Add-on card
|
Enclosure
|
Enclosure
|
2.5”HDD
Add-on card |
2.5”HDD
Add-on card Mini USB2.0 connector |
|
MiniCard dimension support
|
Full/Custom
|
Full
|
Full
|
Full
|
Full
|
|
Notice:
|
|||||
| MP2S | |
| Unit price: US$ 30 | |
|

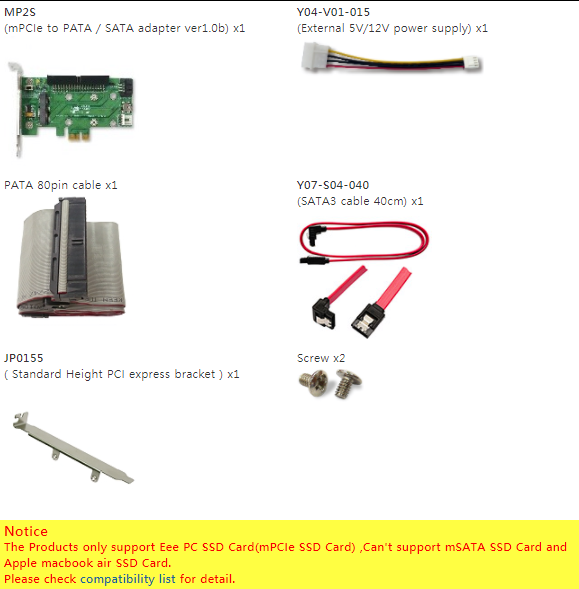

MP2S (mPCIe to PATA / SATA adapter ver1.0b) x1
|
External 5V/12V power supply x1 |
|
PATA 80pin cable x1
|
SATA cable x1
|
|
JP0155 ( Standard Height PCI express bracket ) x1
|
Screw x2
|
NoticeThe Products only support Eee PC SSD Card(mPCIe SSD Card) ,Can't support mSATA SSD Card and Apple macbook air SSD Card.Please check compatibility list for detail. |
|
| Documents Download | |||
| Brief (PDF): |  Taiwan 1 |
 Taiwan 2 Mirror |
 China Mirror |
| Dimension (PDF): | Taiwan 1 |
Taiwan 2 Mirror |
China Mirror |
| Schematic (PDF): | Taiwan 1 |
Taiwan 2 Mirror |
China Mirror |
| User manual(PDF): | Taiwan 1 |
Taiwan 2 Mirror |
China Mirror |
| Compatibility List(PDF): | Taiwan 1 |
Taiwan 2 Mirror |
China Mirror |
| Comparison List(PDF): | Taiwan 1 |
Taiwan 2 Mirror |
China Mirror |
