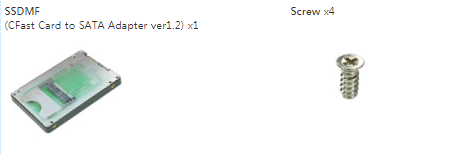

SSDMF (CFast Card to SATA Adapter ver1.2)

Introduction:

This adapter is designed to enable CFast media to be used as a direct replacement for a 2.5” SATA hard drive. Any equipment, such as a laptop that uses a 2.5 SATA hard drive can easily be converted to use a low power, shock resistant CFast media, just like a solid-state drive (SSD). Once installed, the CFast appears as an ordinary SATA hard drive and can be configured as a boot device using any OS.

Function

  • Input socket: CFast
  • Output connection: SATA 22-pi
  • Up to 1.5 Gbps transfer rate
  • No driver required
  • Power management circuit designed to protect inserted devices

System Requirements

  • Windows ME/2000/XP/Vista/ 7
  • Mac OS 10.1.3 or above
  • Notebook or desktop computer with a free SATA port



MP2S, SSDMA, SSDMB,SSDMC,SSDMC-U,SSDMD,SSDMF for SSD minicard comparison                2011/Apr/21
Functions comparison
MP2S ver 1.0b
SSDMA
SSDMB
SSDMC
SSDMC-U
SSDMD
ver1.0
SSDMF
ver1.2
interface
PATA / SATA
(EeePC)
USB2.0
USB3.0
SATA
SATA
USB2.0miniB*
SATA
SATA
EeePC PATA SSD support
Yes
Yes
No
No
No
No
No
EeePC SATA SSD support
Yes
Yes
No
No
No
No
No
mSATA SSD support
No
No
Yes
Yes
Yes
No
No
memory card
No
No
No
No
No
SD card x2
(For SDXC / UHS-I)
CFast
Access LED
Yes
Yes
Yes
No
No
No
No
Appearance
Add-on card
Enclosure
Enclosure
2.5 "HDD or
Add-on card
2.5”HDD or
Add-on card
Mini USB2.0 connector
2.5 "HDD or
Add-on card
2.5 "HDD
MiniCard dimension support
Full/Custom
Full
Full
Full
Full
--
--

Notice:
Almost mini-SATA SSD haven’t USB interface. Please check your mini-SATA SSD is supported for USB interface. Otherwise SSDMC-U USB function should invalid.
The SSDMC / SSDMC-U / SSDMD / SSDMF Products only support 2.5" HDD Dimension.




Documents Download
SSDMF Brief   Taiwan   Taiwan 2 Mirror   China Mirror
Dimension   Taiwan   Taiwan 2 Mirror   China Mirror
Schematic   Taiwan   Taiwan 2 Mirror   China Mirror
Comparison List  Taiwan 1   Taiwan 2 Mirror   China Mirror
