Description

WNFQ-262ACNI(BT) 802.11ac/a/b/g/n Wi-Fi+BT 5.0 Combo M.2 2242 B Key Module, Qualcomm Atheros QCA6174A-5, 2T2R

- Chipset: Qualcomm Atheros QCA6174A-5

- Antenna: 2xIPEX connectors, 2T2R

*Support WLAN/BT co-existence.

Ant 1 for WLAN; Ant 2 for WLAN/BT

- Form Factor: M.2 2242 B key

- Interface: PCIe: WLAN; USB: Bluetooth

- Output Power up to 18dBm

- Support: Windows 7/8.1/10; Linux (Open Source), Recommend Kernel v4.0+

SparkLAN WNFQ-262ACNI(BT) is an 802.11ac/a/b/g/n Dual-Band Wi-Fi / Bluetooth M.2 2242 B key module based on Qualcomm Atheros QCA6174A chipset. This highly integrated module supports most of WLAN capabilities with seamless roaming and advanced security for enterprise application. The wireless module complies with IEEE 802.11 ac/a/b/g/n 2x2 MIMO. The Bluetooth Supports BT 5.0, BLE and is backwards compatible with BT 1.X, 2.X Enhanced Data Rate. The integrated module provides PCIE Interface for Wi-Fi and USB interface for Bluetooth. The download speed are 300Mbps on N networks and 867Mbps on AC network.

Adopting the latest 802.11ac solution. WNFQ-262ACNI(BT) is ideal for next-generation high throughput enterprise networking and Industrial-graded (-40°C~+85°C) solution. Incorporated with advanced security encryption, such as WEP, WPA, WPA2 and 802.1x, it helps prevent user’s devices from malicious attacks.

Suitable Application

Applications include IPC/ Advertising machine/ OTT/ IPTV/ DVB/ STB / DV/ Mini Driving Recorder/ Intelligent Projector Pico/ VR/ AR terminal/ POS machine/ Vehicle mounted front/ Rear Terminal UAV/ Robot/ Intelligent Gateway/ Smart city and other electronic products.

Standard
IEEE802.11ac/a/b/g/n, Bluetooth V5.0, V4.2, V4.1, V4.0 LE, V3.0+HS, V2.1+EDR

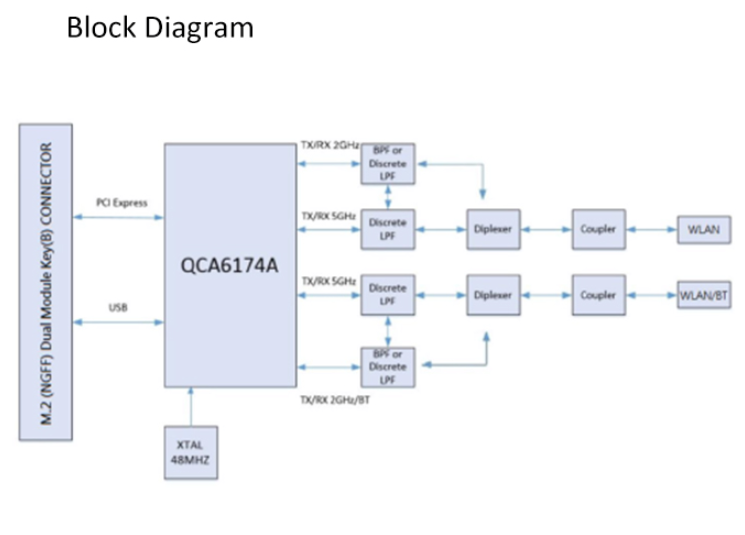

Chipset
Mac/BB/RF	Qualcomm Atheros QCA6174A-5
Interface
PCIe: WLAN; USB: Bluetooth
Radio
Antenna	2xIPEX connectors *Support WLAN/BT co-existenceAnt 1 for WLAN; Ant 2 for WLAN/BT
Operating Frequency	802.11 ac/a/b/g/n ISM Band 2.412GHz~2.484GHz, 5.150GHz~5.850GHz *Subject to local regulations
Modulation	802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11a/g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Output Power	WLAN 802.11a: 14dBm ± 2dBm@54Mbps 802.11gn (HT20): 14dBm ± 2dBm@MCS7 802.11gn (HT40): 13.5dBm ± 2dBm@MCS7 802.11an (HT20): 13dBm ± 2dBm@MCS7 802.11an (HT40): 13dBm ± 2dBm@MCS7 802.11ac (VHT80): 11dBm ± 2dBm@MCS9 Bluetooth 3Mbps: 0 ≦ Output Power ≦ +10dBm
Receive Sensitivity	WLAN 802.11a: ≤-75dBm@54Mbps 802.11gn (HT20): ≤-67dBm@MCS7 802.11an (HT40): ≤-65dBm@MCS7 802.11an (HT20): ≤-71dBm@MCS7 802.11an (HT40): ≤-67dBm@MCS7 802.11ac (VHT80): ≤-57dBm@MCS9 Bluetooth 3Mbps: <0.1% BR,BER at -70dBm
Power consumption
Continue TX	610mA
Continue RX	298mA
Operating Voltage
DC 3.3V
Environmental
Temperature Range	-40°C~85°C (Operating/TBD), -45~90°C (Storing)
Humidity (Non-Condensing)	5~90% (Operating), 5~90% (Storing)
Physical Specification

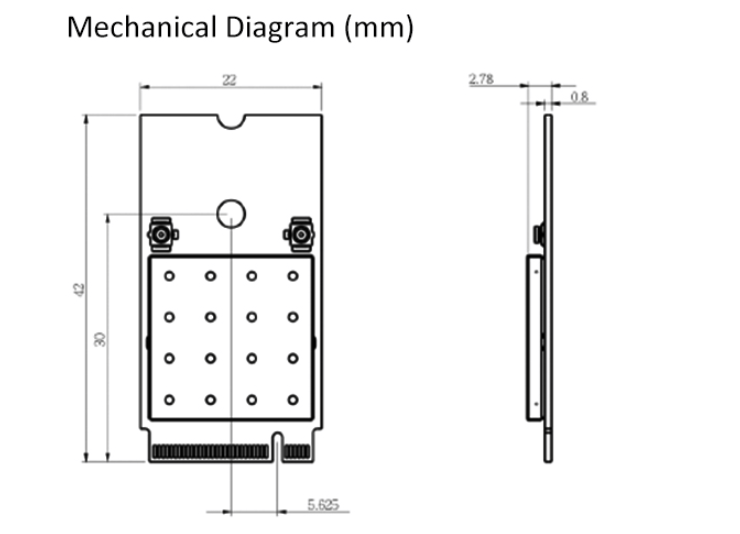

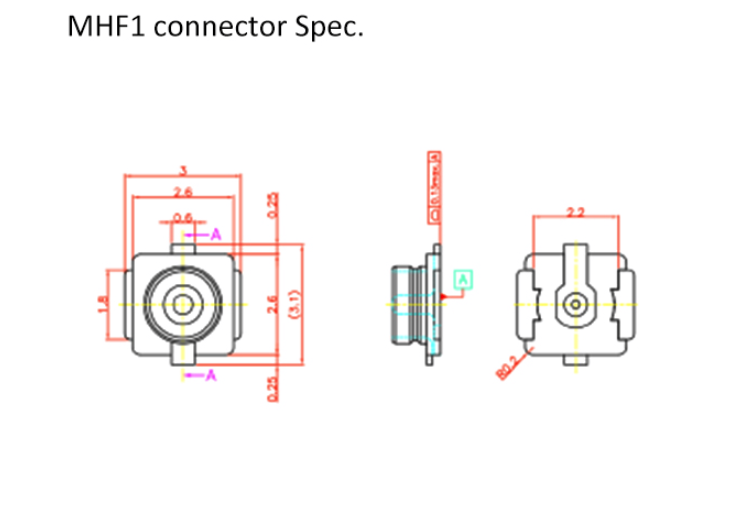

Dimensions (± 0.5mm)	22mm x 42x mm x 2.78mm
Weight	≦6g
Software
Driver	Windows 7/8.1/10, Linux (Open Source), Recommend Kernel v4.0+,
Security	64/128-bits WEP, WPA, WPA2, 802.1x
