Description

WPEQ-160ACN(BT) 802.11ac/a/b/g/n Wi-Fi Half Mini PCIe Module (WiFi 5), Qualcomm QCA9377-7, 1T1R

Chipset: Qualcomm Atheros QCA9377-7
Antenna: 2 x IPEX MHF1 connectors, 1T1R
Interface: USB: WLAN; USB: Bluetooth
Output Power up to 19dBm
Support: Win7/8.1/10

WPEQ-160ACN(BT) is an 802.11ac/abgn 2.4GHz+5GHz Half Mini PCIe module (WiFi 5) based on Qualcomm QCA9377-7 chipset. It supports 1T1R with RX diversity technology, which runs up to 433Mbps, provides higher throughput performance, reliability and range. The WPEQ-160ACN(BT) supports 20/40/80MHz and 256-QAM to maximize bandwidth efficiency.

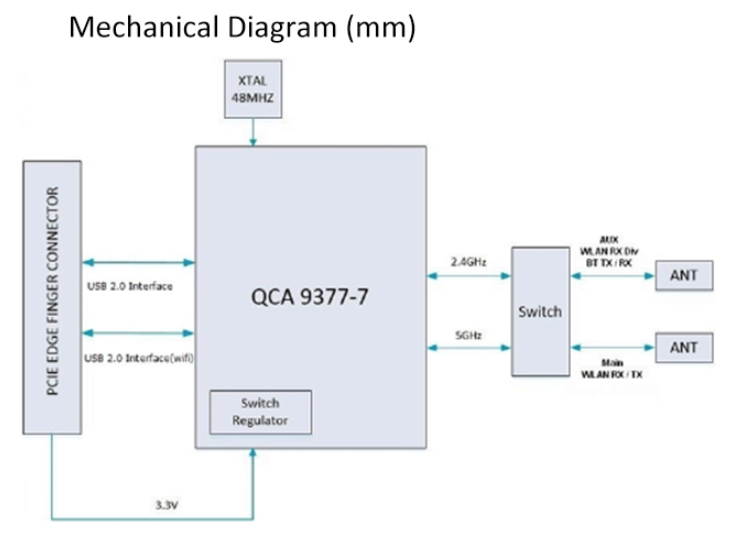

WPEQ-160ACN(BT) is a single-die wireless local area network (WLAN) solution to support 1x1 802.11ac/abgn WLAN standards, designed to deliver superior integration of WLAN and low-energy technology. QCA9377 supports high-speed Wi-Fi connectivity and enriched media experiences for virtually all connected devices. It is optimized for energy efficiency, which is critical to extending the battery life of portable devices. QCA9377-7, which supports a low power USB 2.0 interface for WLAN.

Suitable Application

Applications include medical devices, security systems, industrial, PoS, digital signs, Gaming machine, Medical equipment, industrial tablet PC’s, handheld devices, thin client devices, and many more.

Standard
802.11ac/a/b/g/n
Chipset
Mac/BB/RF	Qualcomm Atheros QCA9377-7
Interface
Wifi: USB
Radio
Antenna	2xU.FL connectors (main antenna 0 on, diversity antenna 1 off)
Operating Frequency	802.11 ac/a/b/g/n ISM Band 2.412GHz~2.472GHz, 5.180MHz~5.825MHz *Subject to local regulations
Modulation	802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11a/g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Output Power	802.11a: 13dBm ± 2dBm@54Mbps 802.11gn (HT20): 16dBm ± 2dBm@MCS7 802.11gn (HT40): 16dBm ± 2dBm@MCS7 802.11an (HT20): 13dBm ± 2dBm@MCS7 802.11an (HT40): 13dBm ± 2dBm@MCS7 802.11ac (VHT80): 10dBm ± 2dBm@MCS9
Receive Sensitivity	802.11a: ≤-73dBm@54Mbps 802.11gn (HT20): ≤-70dBm@MCS7 802.11gn (HT40): ≤-68dBm@MCS7 802.11an (HT20): ≤-67dBm@MCS7 802.11an (HT40): ≤-63dBm@MCS7 802.11ac (VHT80): ≤-55dBm@MCS9
Power consumption
Continue TX	TBD
Continue RX	TBD
Operating Voltage
DC 3.3V
Environmental
Temperature Range	-20°C~70°C (Operating), -30~85°C (Storing)
Humidity (Non-Condensing)	5~90% (Operating), 5~95% (Storing)
Physical Specification
Dimensions	29.85mm x 26.65mm
Weight	≦4.7g
Software
Driver	Windows7/8.1/10
Security	64/128-bits WEP, WPA, WPA2, 802.1x

Document
File Name	Type	Updated	Download
WPEQ-160ACN(BT)_datasheet ver.1.4_20181128		2018.11.28

Driver
File Name	Type	Updated	Download
Windows 10_8.1_BT		2019.11.28
