DP7401 PCIe x16 Gen4 with ReDriver to SlimSAS 8i Dual port Add-in Card

Features:

• SlimSAS 8i (SFF-8654) to PCI Express 4.0 convert
• Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev1.1

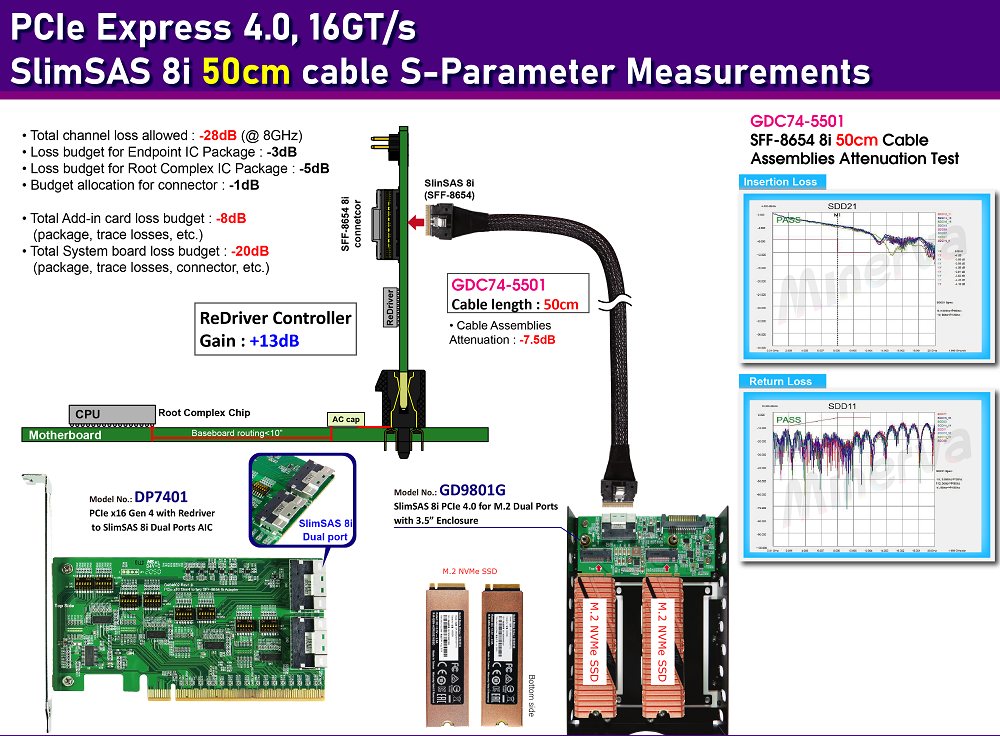

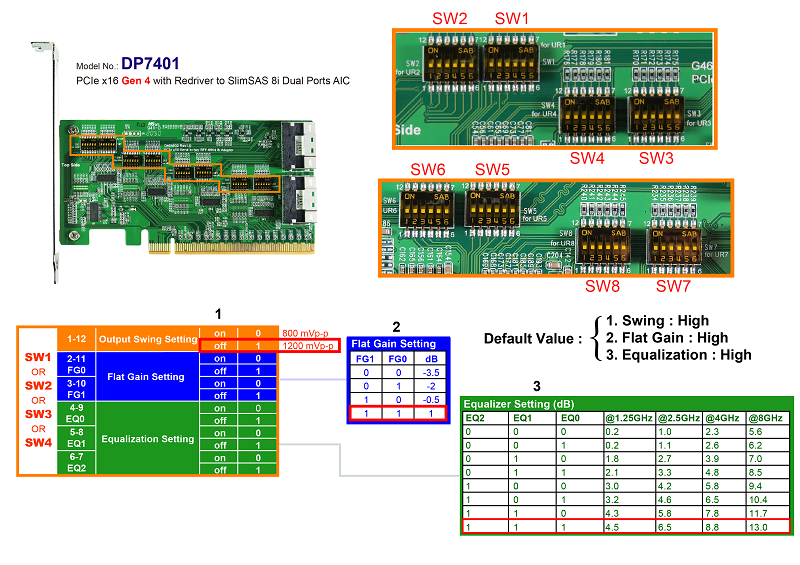

• Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width.

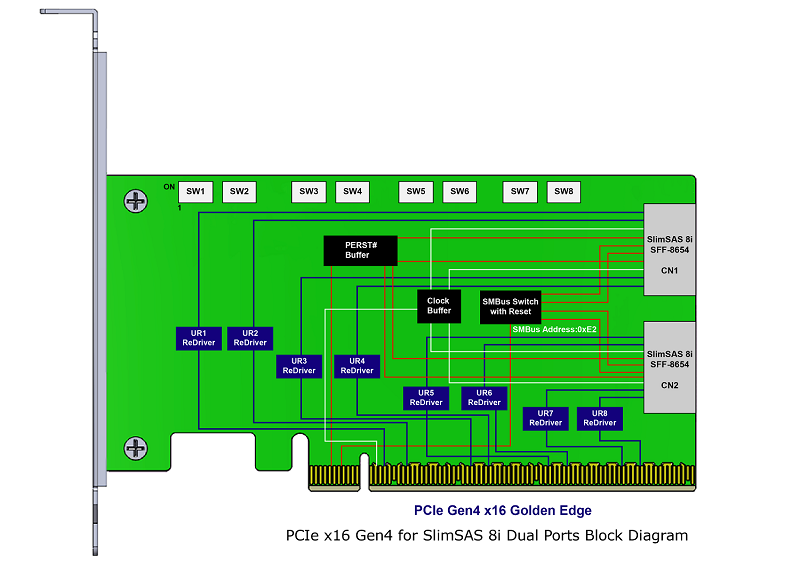

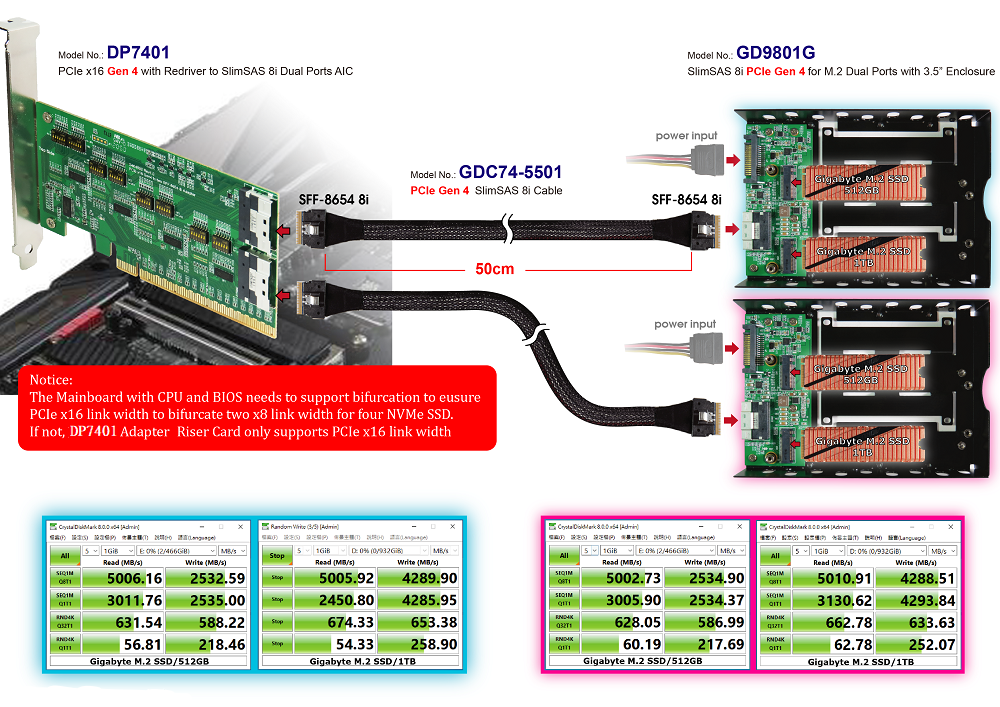

• The 16 lanes in the DP7401 can be bifurcated into four x4 links to support different system topologies
• Built-in PCIe 100MHz Clock buffer to drive longer trace length and longer cable length.
• Built-in 4-Channel SMBus Switch with Reset Funtion
• Built-in PERST# Bus Buffer to be used over longer trace lengths and over longer cable length.
• Built-in WAKE# Bus Buffer to be used over longer trace lengths and over longer cable length.
• Built-in CLKREQ# Bus Buffer to be used over longer trace lengths and longer over cable length.
• Built-in PWRBRK# Bus Buffer to be used over longer trace lengths and longer over cable
• D1 Green LED on indicates AIC ready

Specifications:

• PCI Express Base Specification Rev 4.0
• PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
• Support SSD_Form_Factor_Version1_a
• Compliant with SFF-8654 Specification Version 1.2

Operating system support:

• Windows 7
• Windows 8 &8.1
• Windows 10
• UEFI 2.3.1 or later

Applications:

• Rack server
• Microserver and Tower server
• High performance computing
• Hareware accelerator
• Storage Controller HBA(Host Bus Adapter)
• Desktop PC/motherboard
