DP8401 PCIe x8 Gen4 with ReDriver to SlimSAS 8i (SFF-8654) Add-in Card

Write a Review

Contact support@mfactors.com for detail

SKU:
M-DP8401
For more detail:
Contact support@mfactors.com

Product Overview



Features:

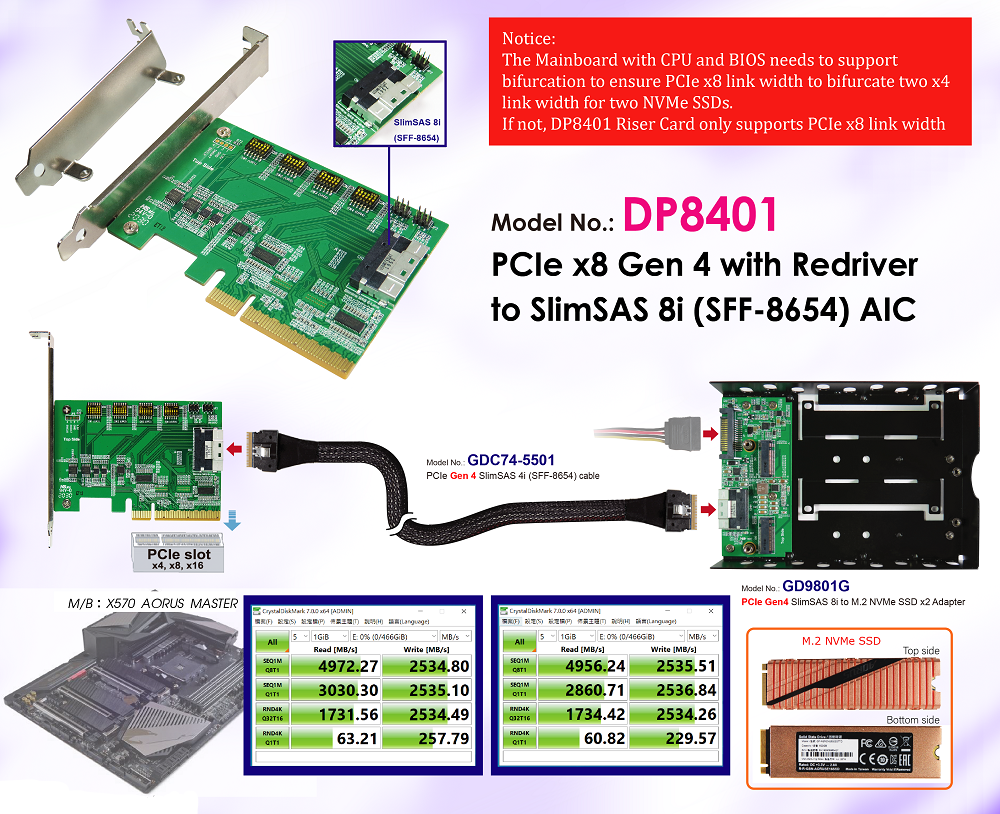

  • SlimSAS 8i (SFF-8654) to PCI Express 4.0 convert
  • Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev1.1

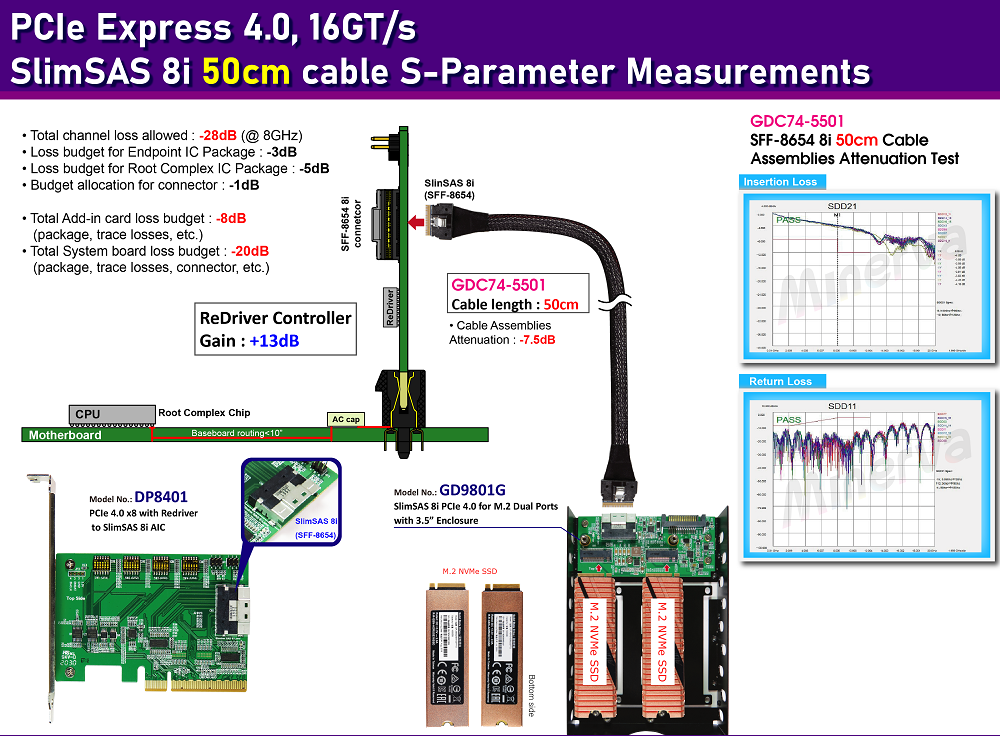

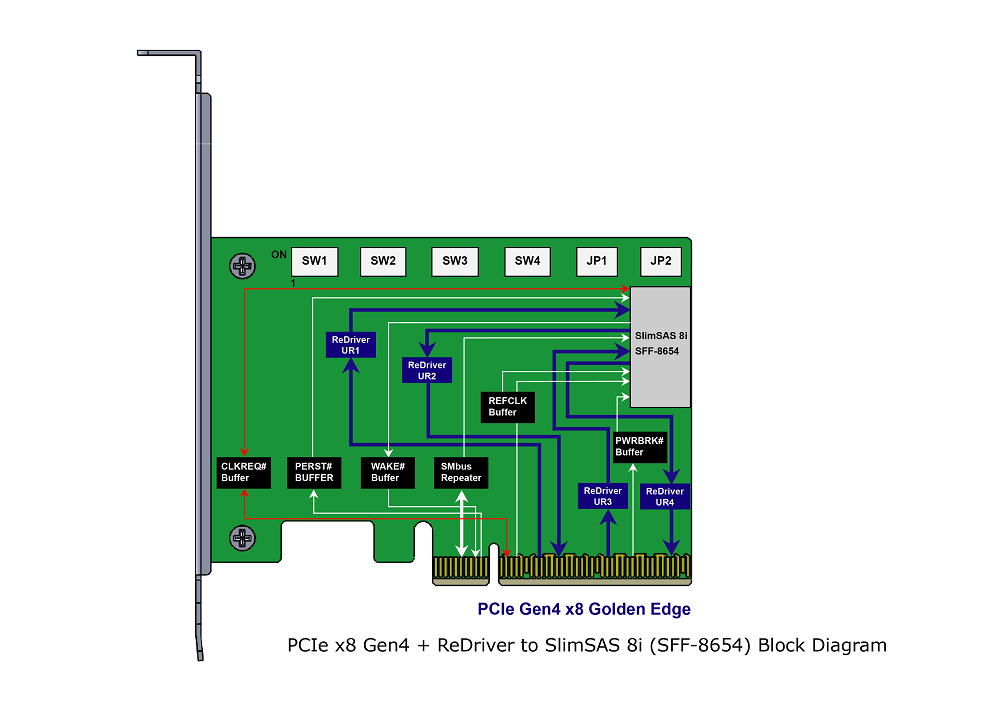

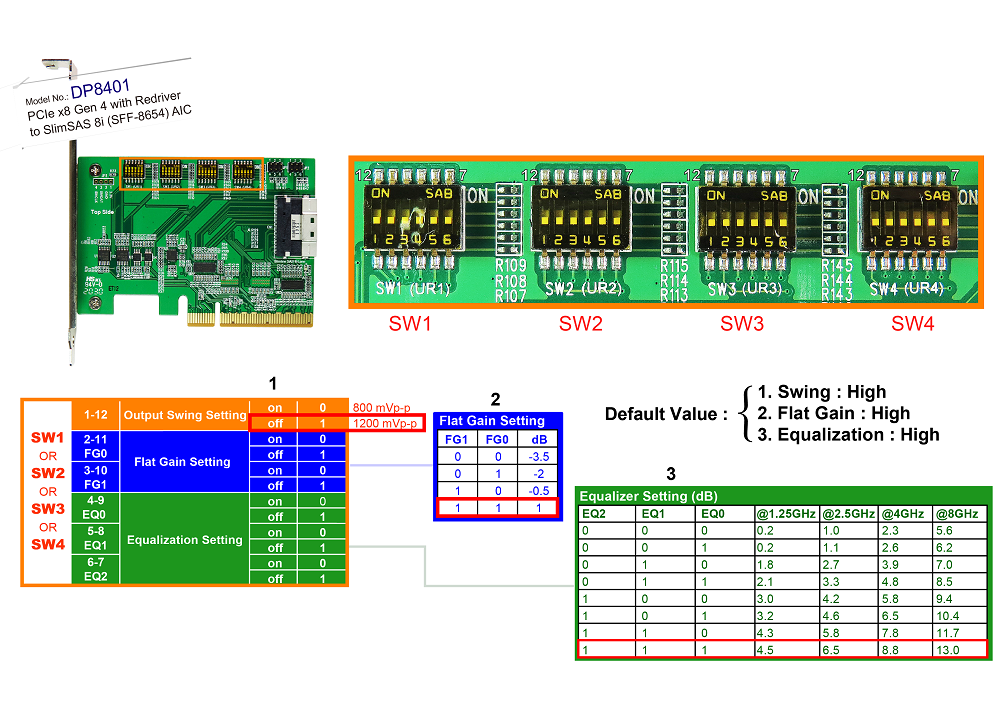

  • Built-in PCIe ReDriver to extend PCIe Gen4, 16GT/s 8 Lanes differential pair signals
  • Built-in PCIe 100MHz Clock buffer to drive longer trace length and longer length cable
  • Built-in PCIe SMCLK, SMDAT bidirectional buffer repeater
  • Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
  • Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
  • Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
  • Built-in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
  • D1 Green LED on indicates AIC ready

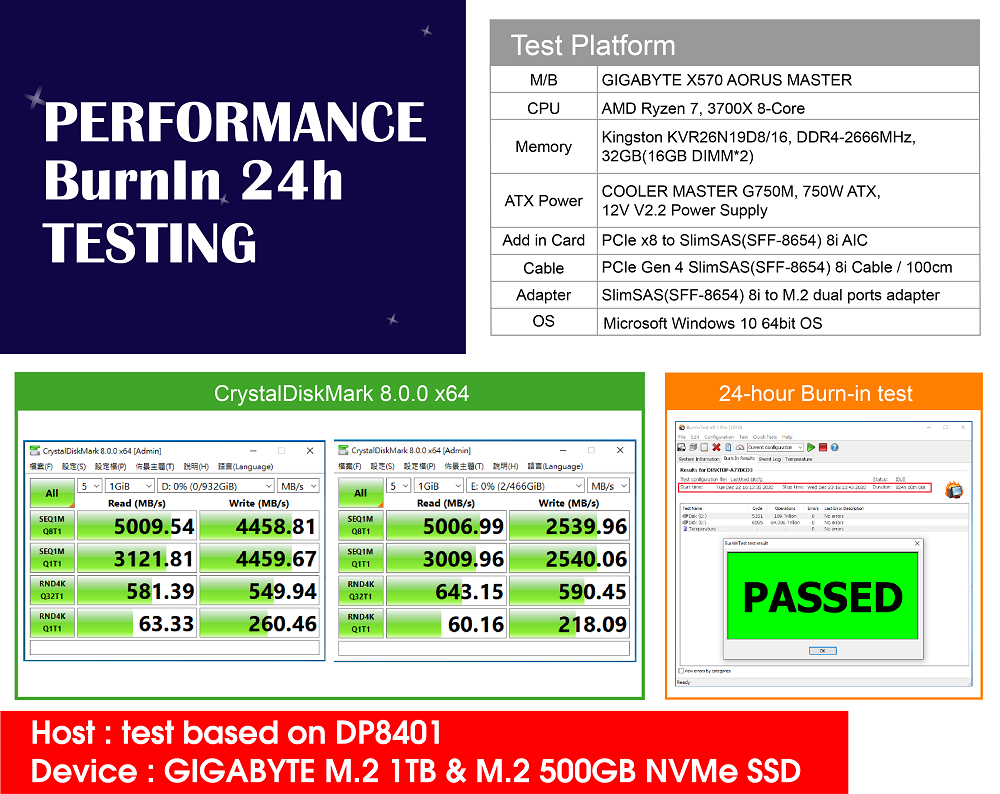

Specifications:

  • PCI Express Base Specification Rev 4.0
  • PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
  • Support SSD_Form_Factor_Version1_a
  • Compliant with SFF-8654 Specification Version 1.2

Operating system support:

  • Windows 7
  • Windows 8 &8.1
  • Windows 10
  • UEFI 2.3.1 or later

Application:

  • Rack server
  • Microserver and Tower server
  • High performance computing
  • Hareware accelerator
  • Storage Controller HBA(Host Bus Adapter)
  • Desktop PC/motherboard
