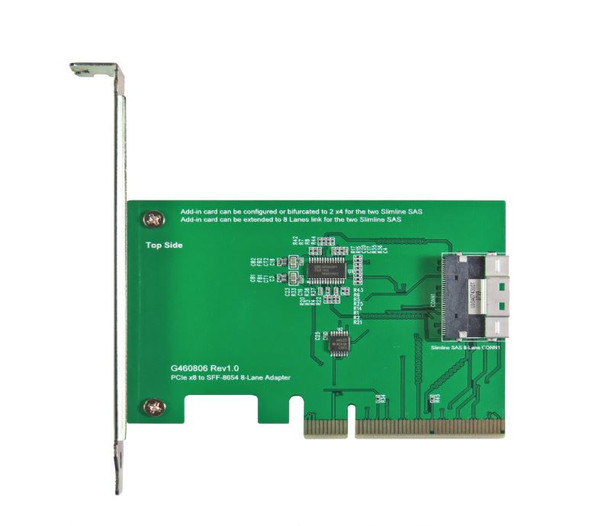

PCIe Gen3 8-lane to Slimline SAS (SFF-8654) 8i Add-in Card(AIC)

Write a Review

Please contact us at support@mfactors.com for a quote

Product Overview

Features

  • PE0804 can be offered in two x4(need CPU and BIOS both support) or can be extended x8 data width configurations.
  • PE0804 features one internal Slimline SAS connector(SFF-8654 8i) for high-perfoemace storage connectivity.
  • Build in SFF-8654 8i Slimline SAS connector, pin-out defined by PCIe
  • Dual-port PCIe Gen 3 NVMe controller
  • Eight internal lanes for SFF-8654 8i, 6.4GB/s
  • Supports two physical NVMe devices
  • Supports SFF-9402 clock & perst# pin out
  • Support Intel Define Slimline SAS SFF-8654 clock & perst# pin out
  • Enables the system perst# signal to be used over longer trace lengths and over a cable

Specifications

  • Compliant with NVM Express 1.2a
  • Support PCI Express Base Specification Rev 3.0
  • Support SSD_Form_Factor_Version1_a
  • Compliant with SFF-8654 Specification Version 1.2

Operating System Support

  • Vmware
  • Linux
  • Windows Series OS
  • UEFI 2.3.1 or later

Application

  • Servers
  • HBA(Host Bus Adapter)
  • Data Center
  • Storage Racks
  • Storage Controller
  • Servers RAIDs(Redundant Array of Independent Disks)
  • Routers
  • Switchs
