Product Overview

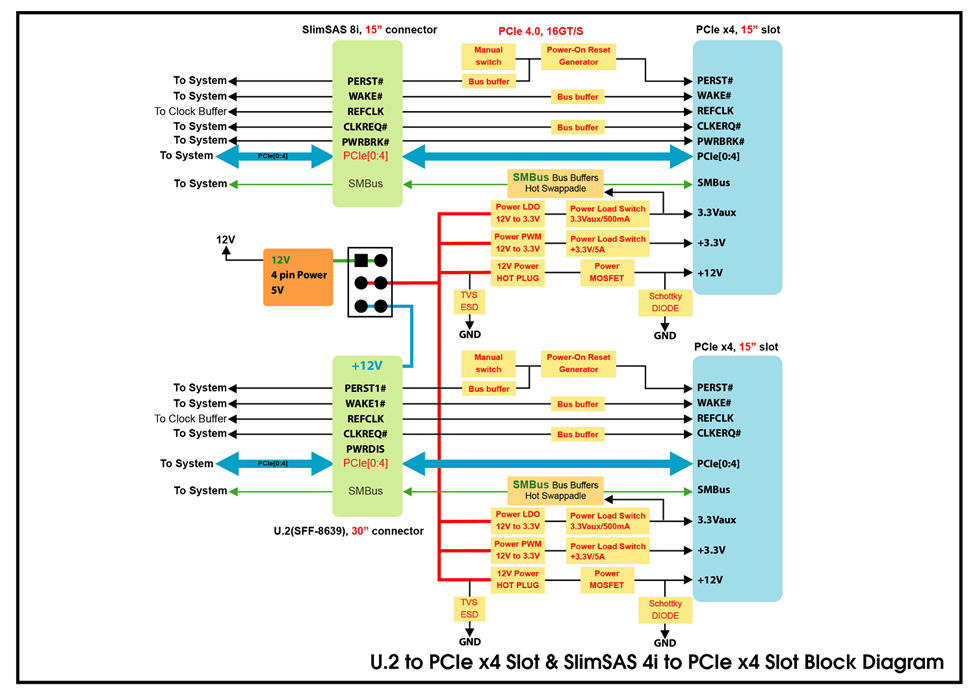

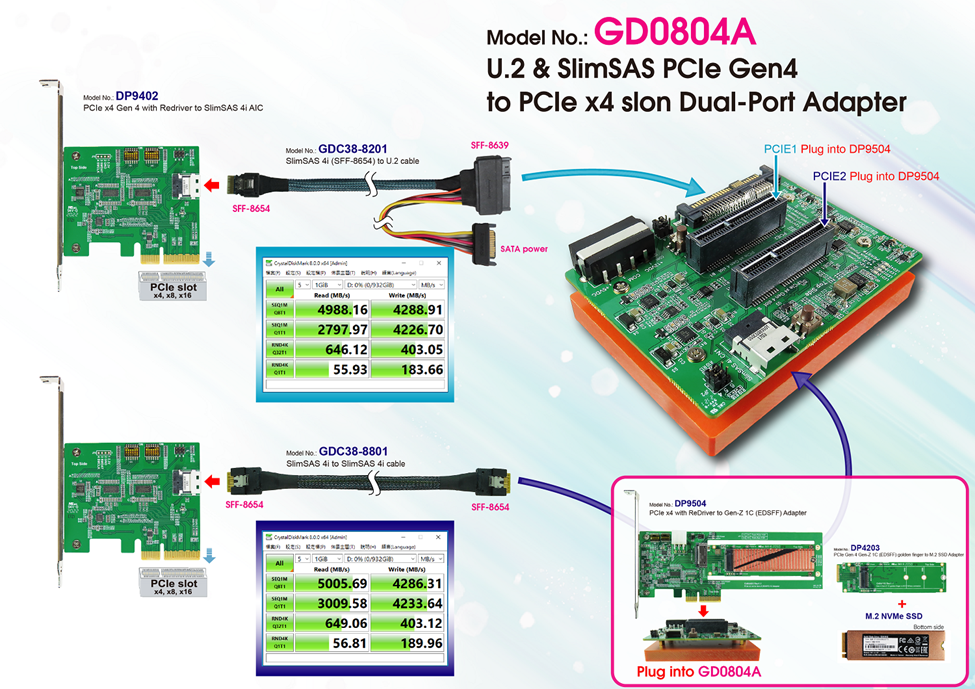

- U.2(SFF-8639) to PCIe x4 convert
- SlimSAS 4i(SFF-8654) to PCIe x4 convert
- Built-in SFF-8639 connector, pin-out defined by SFF-9402 Rev1.1
- Built-in SFF-8654 4i connector, pin-out defined by SFF-9402 Rev1.1
- Built-in PCIe x4 Slot x2
- Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V
- â—† Programmable Current Limit: 6.5A
- â—† Programmable Inrush Current Slew Rate
- â—† Thermal shutdown protection and fault alert
- â—† Back-to-Back (B2B) FET Operation
- PWM synchronous 12V to 3.3V buck converter Power
- â—† 4A maximum output current
- â—† Over Current Protection
- â—† Under Voltage Protection
- â—† Under voltage lock out protection (UVLO) monitors
- â—† Thermal shutdown protection
- â—† ESD Human Body Mode(HBM)/2KV
- Built-in 3.3V Power Load Switch for PCIe +3.3V
- 12V to 3.3V LDO buck converter Power
- Built-in 3.3V Power Load Switch for PCIe 3.3Vaux
- Built-in SMBus Hot Swappable 2-Wire Bus Buffer

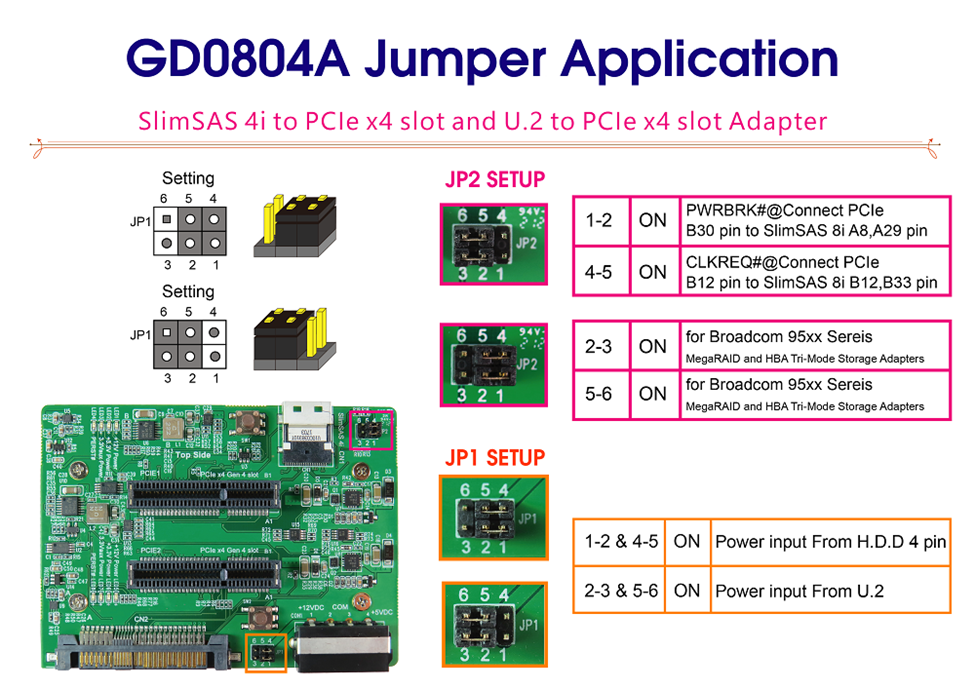

- Supports SlimSAS 4i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
- Supports SlimSAS 4i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
- LED1, LED5 PCIe +12V power ready
- LED2, LED6 PCIe +3.3V power ready
- LED3, LED7 PCIe 3.3Vaux power ready
- LED4, LED8 PCIe PERST#
