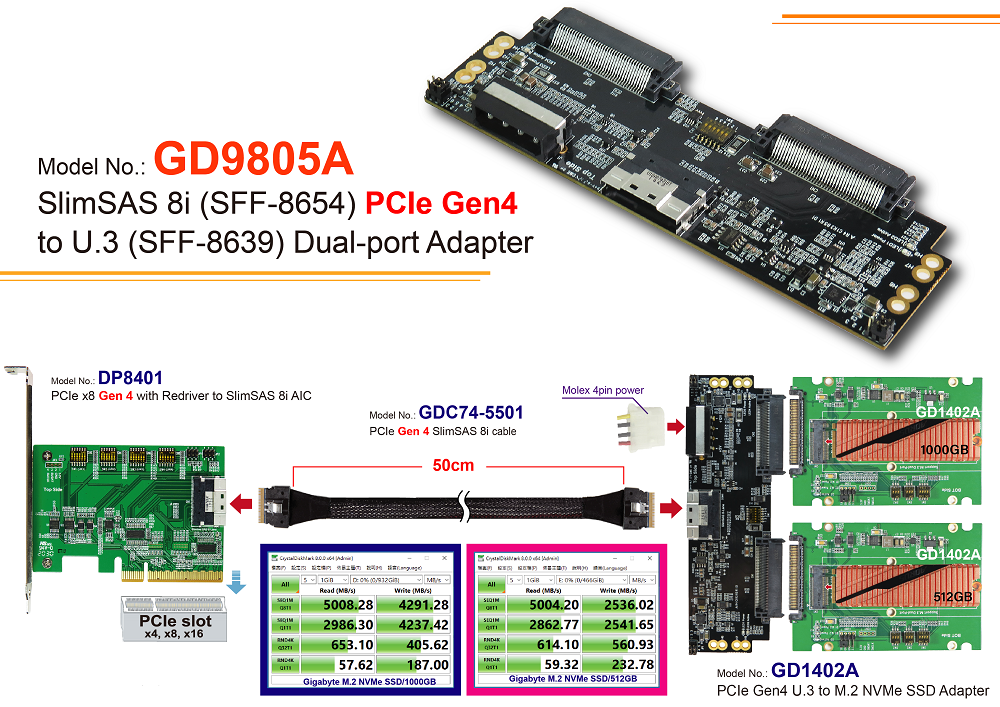

GD9805A (SLIMSAS 8I TO U.3 (SFF-8639) SSD DUAL PORT ADAPTER)

Write a Review

Contact support@mfactors.com to order

Product Overview

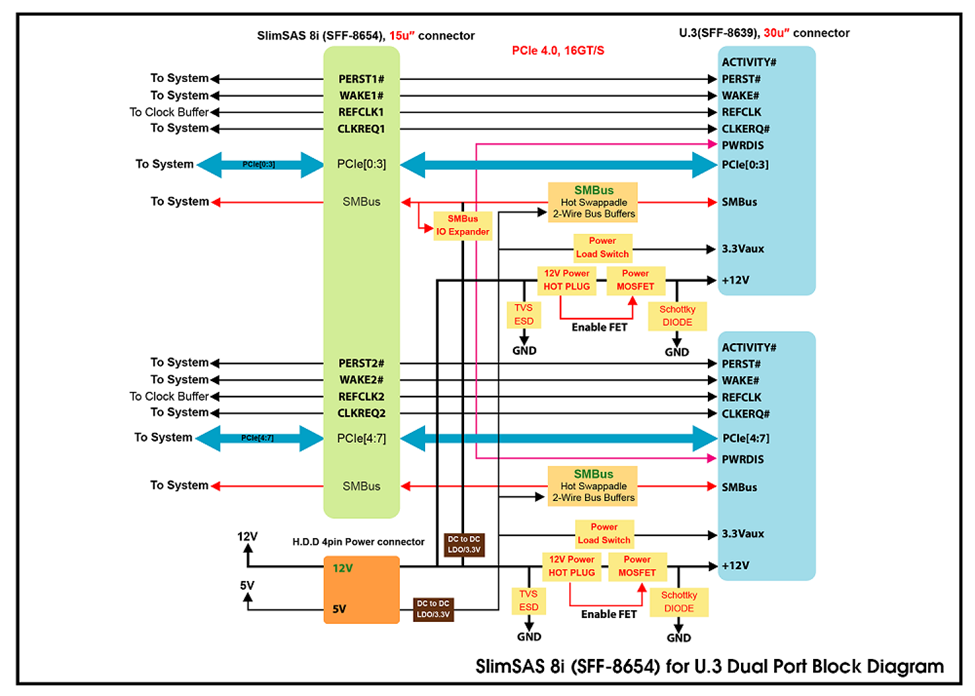

  • U.3 dual ports to SlimSAS 8i (SFF-8654) convert
  • Built-in SlimSAS 8i, 15u” connector, pin-out defined by SFF-9402 Rev1.1
  • Built-in two U.3 SFF-8639, 30u” connector
  • Built-in two 12V Hot Plug Power with eFuse protection for U.3 dual ports
  • ◆ Programmable Current Limit: 6.5A
  • ◆ Programmable Inrush Current Slew Rat
  • ◆ Thermal shutdown protection and fault alert
  • ◆ Back-to-Back (B2B) FET Operation
  • Supports U.3 to PCIe CLKREQ#, WAKE#

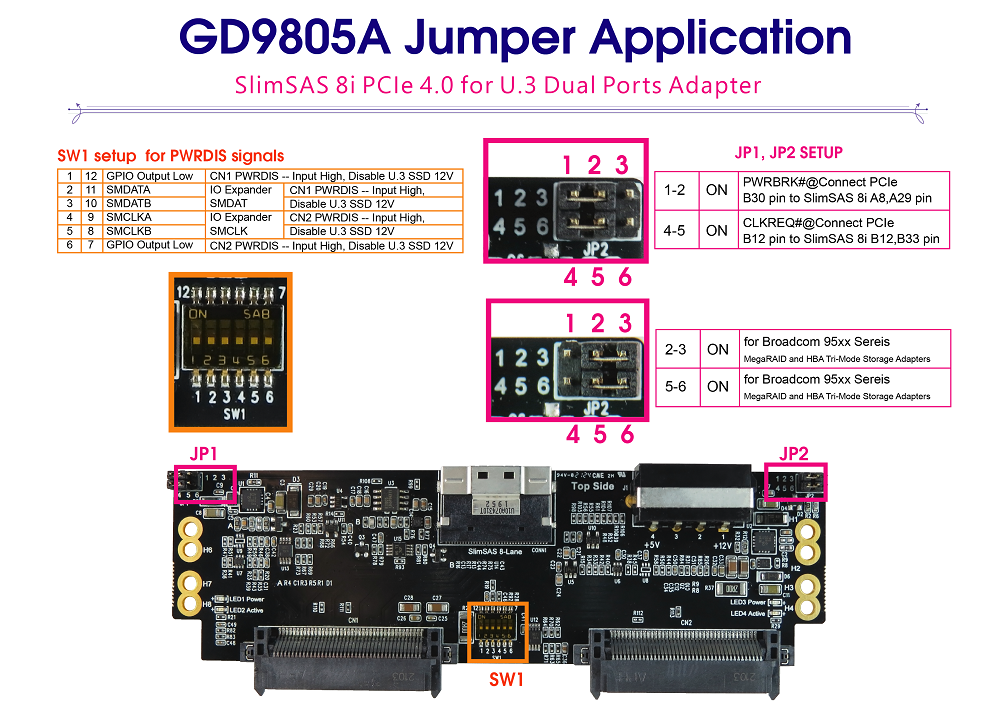

  • Supports U.3 PWRDIS Implementation
  • Built-in SMBus Hot Swappable 2-Wire Bus Buffer
  • Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
  • Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
  • LED2, LED4 Green LED on indicates U.3 NVMe SSD power ready
  • LED1, LED3 RED LED Blinking indicates U.3 active status
