Product Overview
The M2BU3S adapter is designed for desktop/Laptop PCs that converts 5G/4G/3G wireless M.2 key B USB 3.0 module to full/half mini card Rev 2.1 slot. You can insert your M.2 card (Socket 2 SSIC-base WWAN) such as GSM, HSPA(3.5G), GPS, LTE cards to this adapter then plug into USB port through USB cable.
Function
- Allows user to use M.2 Socket SSIC-based WWAN Module to mPCIe Slot in the Desktop or Laptop.
- Supports USB 3.0 interface of M.2 Cards (Socket 2 SSIC-base WWAN) such as 2G GSM, GPRS, 3G,CDMA, WLAN,WWLAN, HSPA MODEM , GPS, 4G, WiMAX, LTE, Mini Card to desktop PC.
- Support Full size and half size mPCIe slot
Specifications
- USB 3.0 M.2 B key Card to mini card Rev 2.1 adapter.
- M.2 Specification Revision 1.0
- Universal Serial Bus Specification Revision 3.0
- Support 2230/2242 M.2 Card dimension.
- Support M.2 Socket SSIC-based WWAN Module.
- Support M.2 Key B Card Type.
System Requirement
- Mini PCI-E slot support mini card Specification Revision 2.1
M.2 (NGFF) to mini PCI-E Adapter comparison | |||||

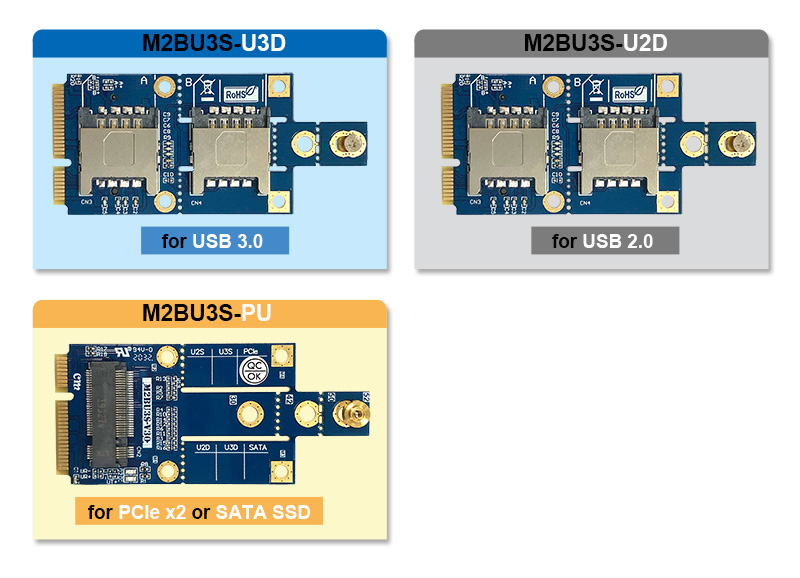

Model Name | UN32B | M2BU3S-U3D | M2BU3S-U2D | M2BU3S-PU | M2MU2 |
Function | M.2 to mini card Rev 2.1 | M.2 to mini card Rev 2.1 | M.2 to mini card Rev 2.1 | M.2 to mini card Rev 2.1 | M.2 to mPCIe |
Interface | PCIe & USB 3.0 | USB 3.0 | USB 2.0 | PCIe 2x or SATA | USB 2.0 |
M.2 SPEC | Socket 2 PCIe & USB3.0 dual bus WWAN | Socket 2 SSIC-based WWAN | Socket 2 SSIC-based WWAN | Socket 2 | Socket 2 SSIC-based WWAN |
Application | 5G / 4G / 3G / CDMA / LTE / GPS module | 4G / 3G / CDMA / LTE / GPS module | 4G / 3G / CDMA / LTE / GPS module | PCIe 2x or SATA SSD module | 4G / 3G / CDMA / LTE / GPS module |
Module KEY | B | B | B | B | B |
Support Card Type | 3030/3042/3050/3052 | 2242,50,52 / 3042,50,52 | 2242,50,52 / 3042,50,52 | 2242,50,52 / 3042,50,52 | 2230/2242/3030/3042 |
Photo |
