M2S-C (SATA to M.2-Socket2-B+M-2242-2280 SATA Adapter)

Introduction:

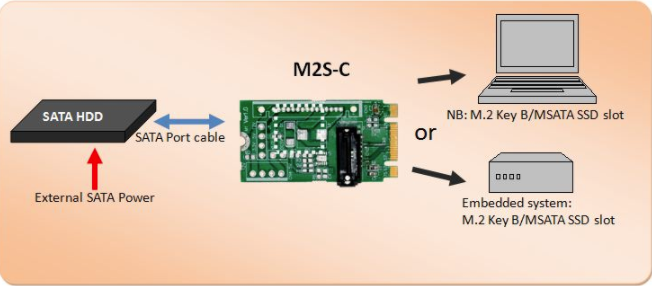

M2S-C is SATA adapter from M.2 Socket 2. This module allows you connect any SATA device to M.2 slot through a standard SATA port.
M2S supports M.2 socket 2 with TYPE 2242-2280-D2-B-M of SATA SSD. SATA interface supports standard SATA 7pin data signals.

M2S-C is the best solution to evaluate M.2 SATA SSD socket.

Specifications

• Standard SATA interface adapter from M.2 Socket 2 slot for SATA SSD
• Compliant with PCIe M.2
• Body Size: TYPE 2242-2280-D2-B-M
• Module Key : B+M (Both Key B and Key M)
• Interface : Standard SATA 7pin Connector
• Compliant with Serial ATA Revision 3.1

OS Support

• Transparent to the operating system and does not require any software drivers.

System Requirement

• Type 2242-2280 M.2 Socket 2 with Key B or M for SATA

Notice

• This adapter is an engineering test tool. It is NOT for home or office use.
• Rev 0.7 Compliant. Specification may vary in newer revision.
• The Products just only support M.2 SATA slot, Can’t support other SSD such as mSATA, Eee PC SSD, Apple MacBook air SSD Card.
• Support SATA interface only. No other interface (such as PCIe or USB) is supported.

Package Content
