Description

MM2U-C (Half to Full minicard adapter)

Introduction:

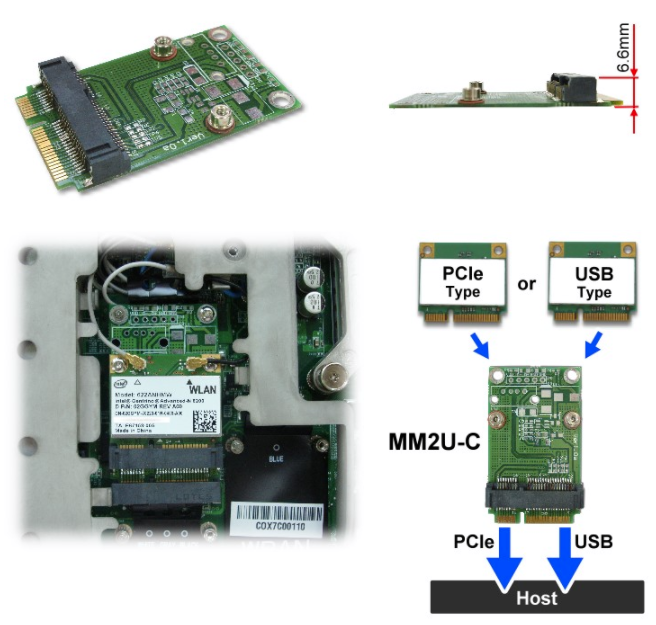

The MM2U-C half to full mini card is a converter tool for minicard interface.
This module allows you to use your half mini card in the full mini card slot.
It's especially designed to save valuable labor and time in the production environment.

Features

Supports half mini card to full size minicard slot
High quality connectors for long service life
Supports both PCIe and USB interface minicard.

System Requirements

MiniCard full size slot

Dimension

Width 30mm, Length 51mm, PCB Thickness 1.0mm Max

Functions comparison	MM2U Ver 1.0a	MM2U Ver 1.2	MM2U-C Ver1.0a	MM2U-S Ver1.1
PCIE Type	Yes	Yes	Yes	Yes
USB Type	Yes	Yes	Yes	Yes
SIM card connector	No	Yes	No	Yes
Mini card dimension support	Half	Half	Half	Half
USB device	Yes	Yes	No	No
3V to 5V DC2DC circuit	Yes	Yes	No	No
USB 5V Power LED	Yes	Yes	No	No
Access LED	Yes	Yes	No	No

Documents Download
Brief (PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror
Dimension (PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror
Schematic (PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror
Comparison table	Taiwan 1	Taiwan 2 Mirror	China Mirror
