Product Overview

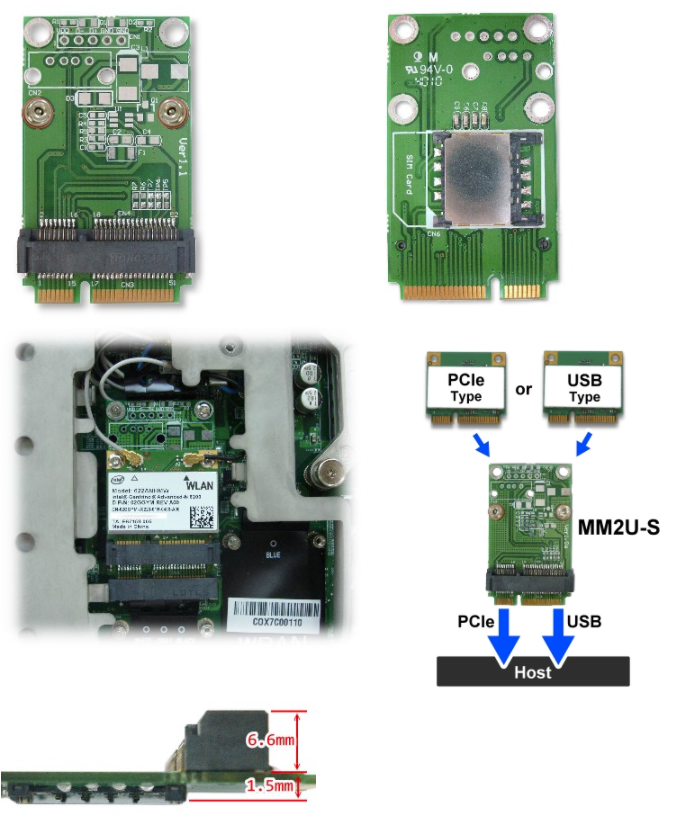

MM2U-S (Half to Full Minicard adapter with SIM Card Connector)
Introduction:
The MM2U-S half to full mini card is a converter tool for minicard interface.
This module allows you to use your half mini card in the full mini card slot.
It's especially designed to save valuable labor and time in the production environment.
Features
- Supports half mini card to full size minicard slot
- High quality connectors for long service life
- Supports both PCIe and USB interface minicard.
- SIM Connector
System Requirements
- MiniCard full size slot
Dimension
- Width 30mm, Length 51mm, PCB Thickness 1.0mm Max
|
Functions comparison
|
MM2U Ver 1.0a
|
MM2U Ver 1.2
|
MM2U-C Ver1.0a
|
MM2U-S Ver1.2
|
|
PCIE Type
|
Yes
|
Yes
|
Yes
|
Yes
|
|
USB Type
|
Yes
|
Yes
|
Yes
|
Yes
|
|
SIM card connector
|
No
|
Yes
|
No
|
Yes
|
|
Mini card dimension support
|
Half
|
Half
|
Half
|
Half
|
|
USB device
|
Yes
|
Yes
|
No
|
No
|
|
3V to 5V DC2DC circuit
|
Yes
|
Yes
|
No
|
No
|
|
USB 5V Power LED
|
Yes
|
Yes
|
No
|
No
|
|
Access LED
|
Yes
|
Yes
|
No
|
No
|
