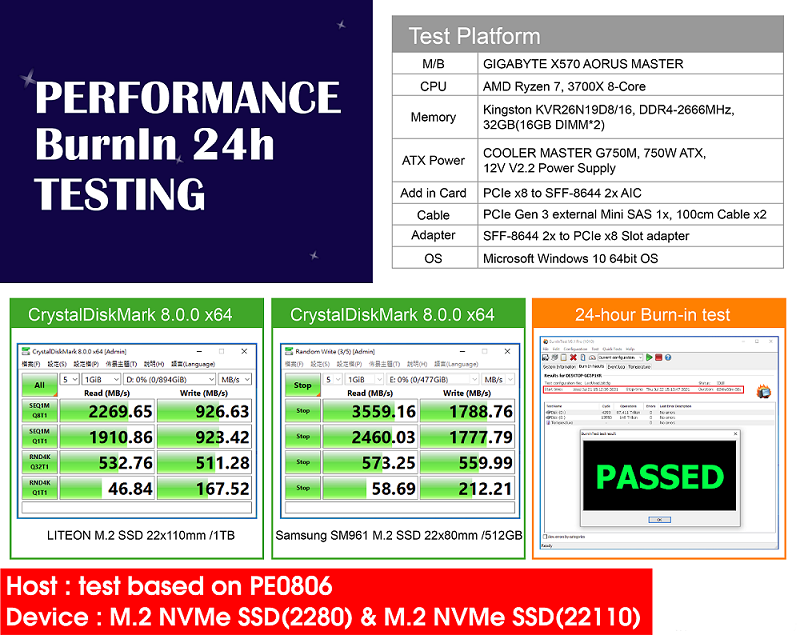

Product Overview
- External Mini SAS HD 8x (SFF-8644) to PCIe x8 Gen 3 convert
- Built-in SFF-8644 8x connector

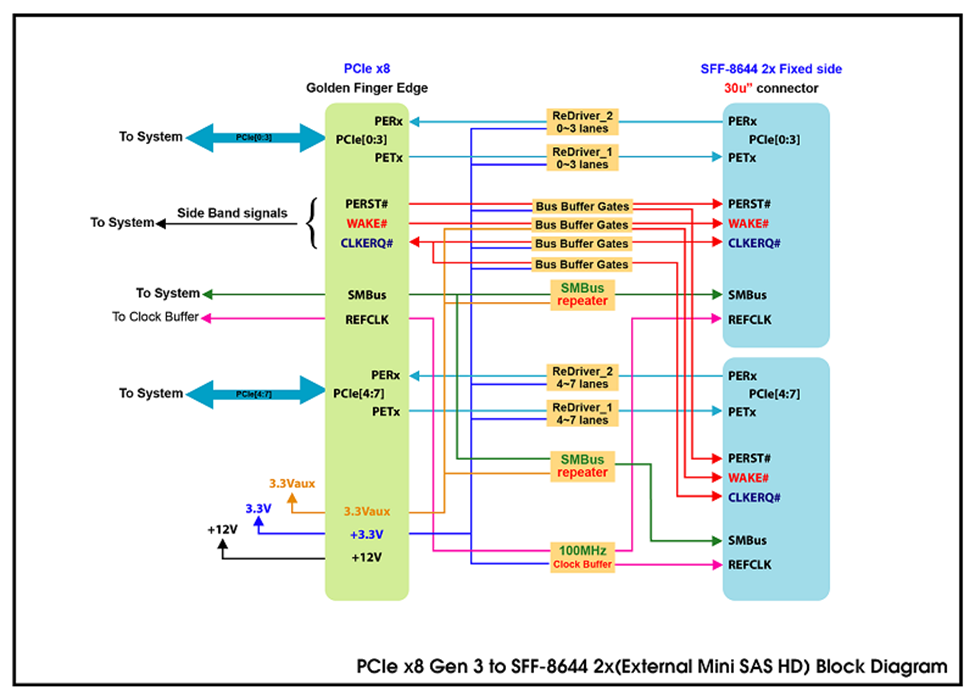

- Built-in ReDriver to extend PCIe 3.0, 8GT/s differential pair signals 8 lanes data link widths
- Built-in PCIe 100MHz Clock buffer to drive longer trace length and longer cable length
- Built-in PCIe SMCLK, SMDAT bidirectional buffer repeater
- Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable lengths
- Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable lengths.
- Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and over longer cable length.
- D1 Green LED on indicates AIC ready

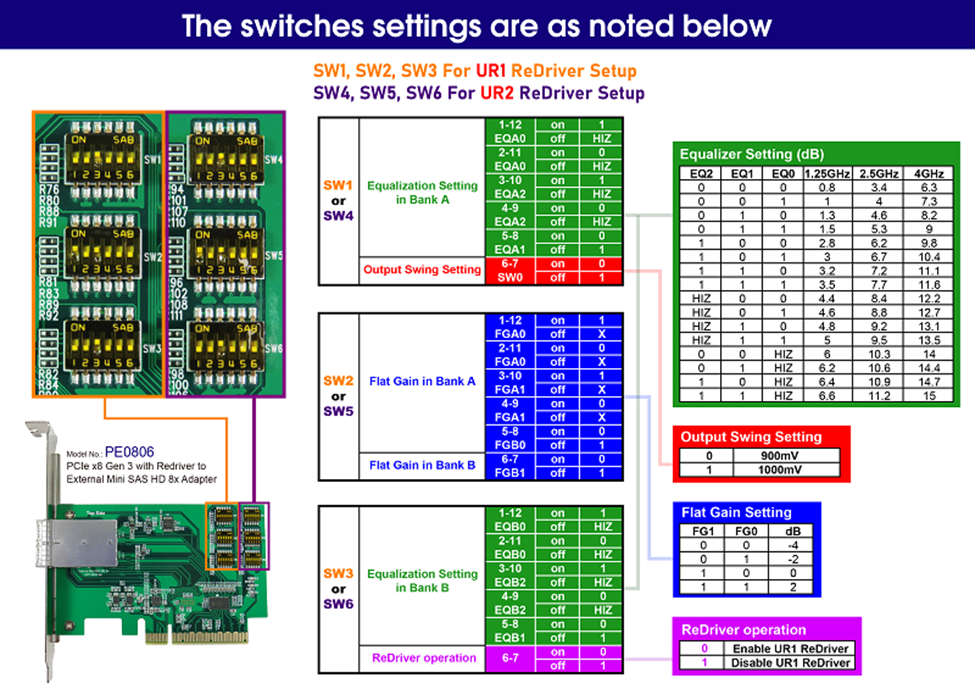

- D2 Green LED on indicates UR1 ReDriver chip enable
- D3 Green LED on indicates UR2 ReDriver chip enable
