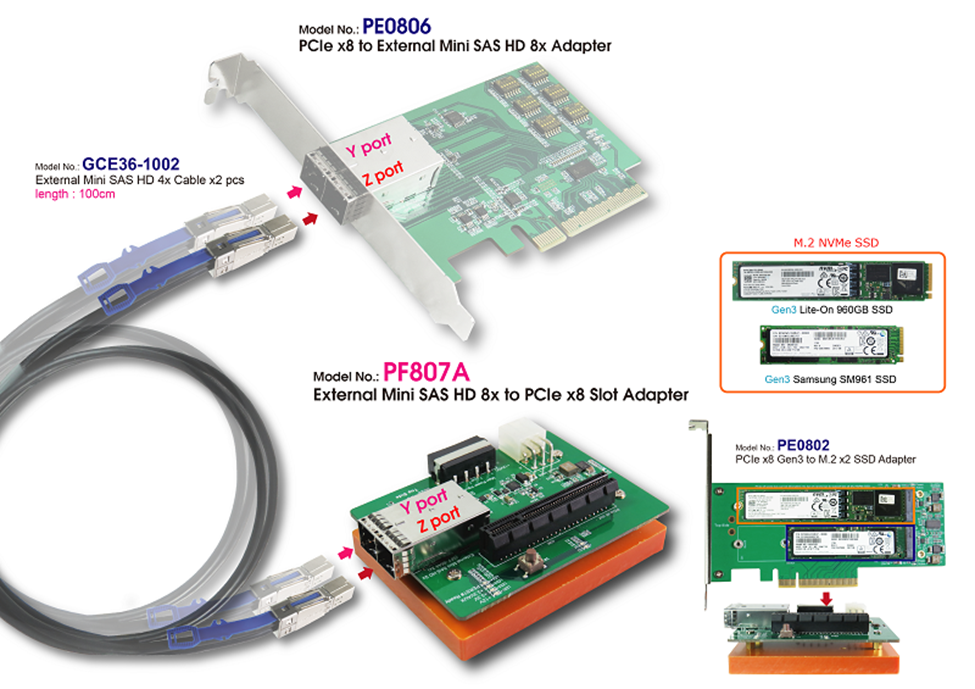

PF807A (EXTERNAL MINI SAS HD 8X TO PCIE X8 SLIOT ADAPTER)

Write a Review

Contact support@mfactors.com to order

Product Overview

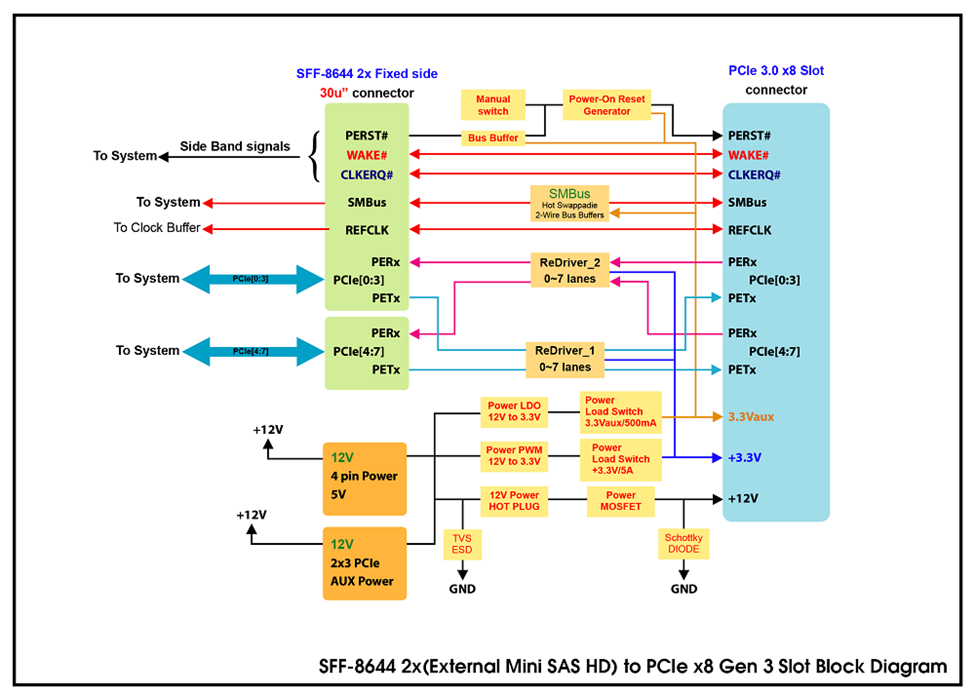

  • External miniSAS 2x(SFF-8644) to PCIe x8 convert
  • Built-in SFF-8644 2x connector
  • Built-in PCIe x8 Slot
  • Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V
  • ◆ Programmable Current Limit: 6.5A
  • ◆ Programmable Inrush Current Slew Rate
  • ◆ Thermal shutdown protection and fault alert
  • ◆ Back-to-Back (B2B) FET Operation
  • PWM synchronous 12V to 3.3V buck converter Power
  • ◆ 4A maximum output current
  • ◆ Over Current Protection
  • ◆ Under Voltage Protection
  • ◆ Under voltage lock out protection (UVLO) monitors
  • ◆ Thermal shutdown protection
  • ◆ ESD Human Body Mode(HBM)/2KV
  • Built-in 3.3V Power Load Switch for PCIe +3.3V, 4A
  • 12V to 3.3V LDO buck converter Power
  • Built-in 3.3V Power Load Switch for PCIe 3.3Vaux, 500mA
  • Built-in SMBus Hot Swappable 2-Wire Bus Buffer
  • LED1 PCIe +3.3V power ready
  • LED3 PCIe 3.3Vaux power ready
  • LED4 PCIe +3.3 power ready
