Product Overview
Features:

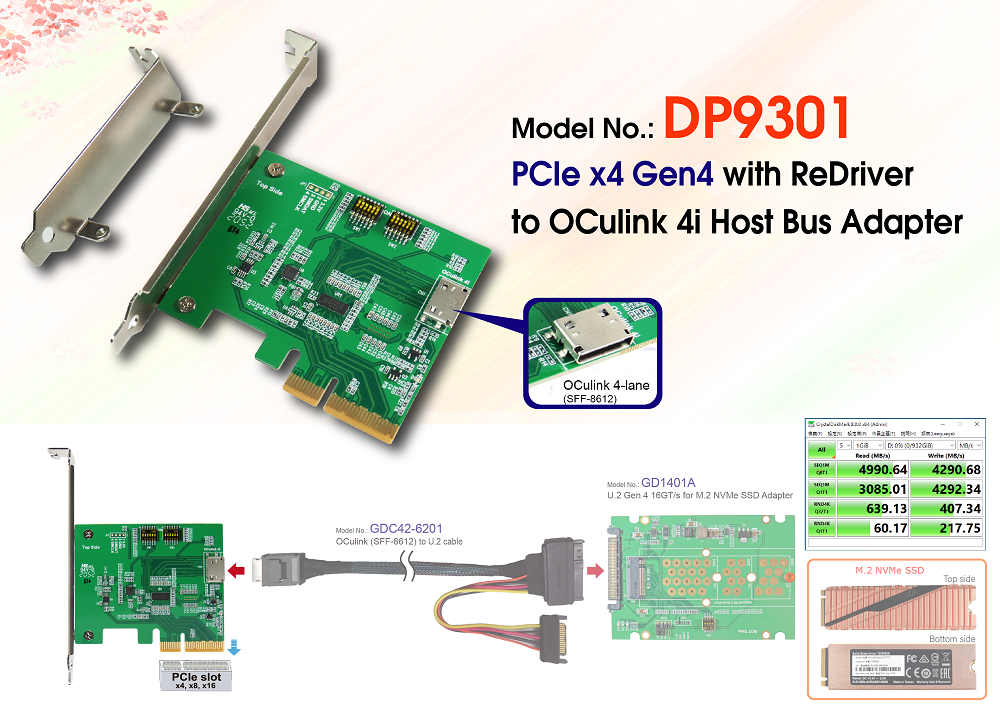

- Oculink4i (SFF-8612) to PCIe convert
- Built- in SFF-8612 connector, pin-out defined by SFF-9402 Rev1.1
- Built- in PCIe ReDriver to extend PCIe Gen 4, 16GT/s differential pair signals
- Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
- Built- in PCIe 3.3V SMCLK, SMDAT bidirectional buffer repeater
- Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
- Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
- Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
- Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
- D3 Green LED on indicates Host Bus Adapter ready
Specifications:
- PCI Express Base Specification Rev 4.0
- PCIe_CEM_SPEC_R4_V1_0_08072019_NCB
- Support SSD_Form_Factor_Version1_a
- Compliant with SFF-8612 Specification Version 3.5
- PCI_Express_OCuLink_1.0a
Operating system support:
- Windows 7
- Windows 8 &8.1
- Windows 10
- UEFI 2.3.1 or later
Applications:
- Rack server
- Microserver and Tower server
- High performance computing
- Hardware accelerator
- Storage Controller HBA(Host Bus Adapter)
- Desktop PC/motherboard
Usage:

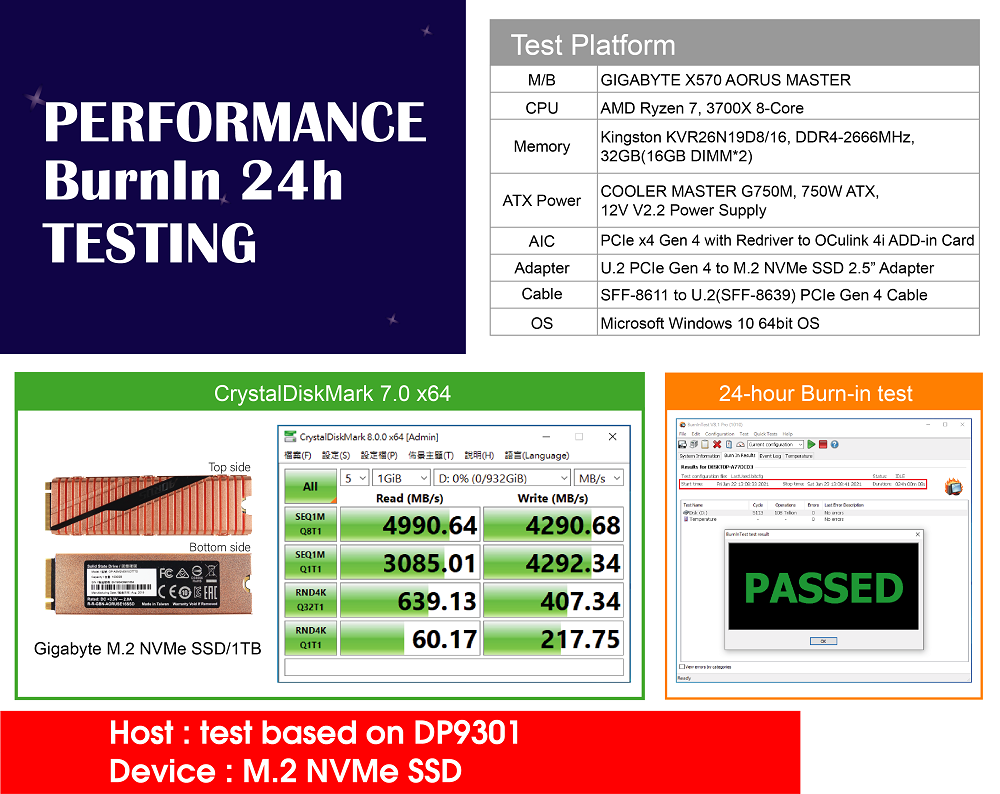

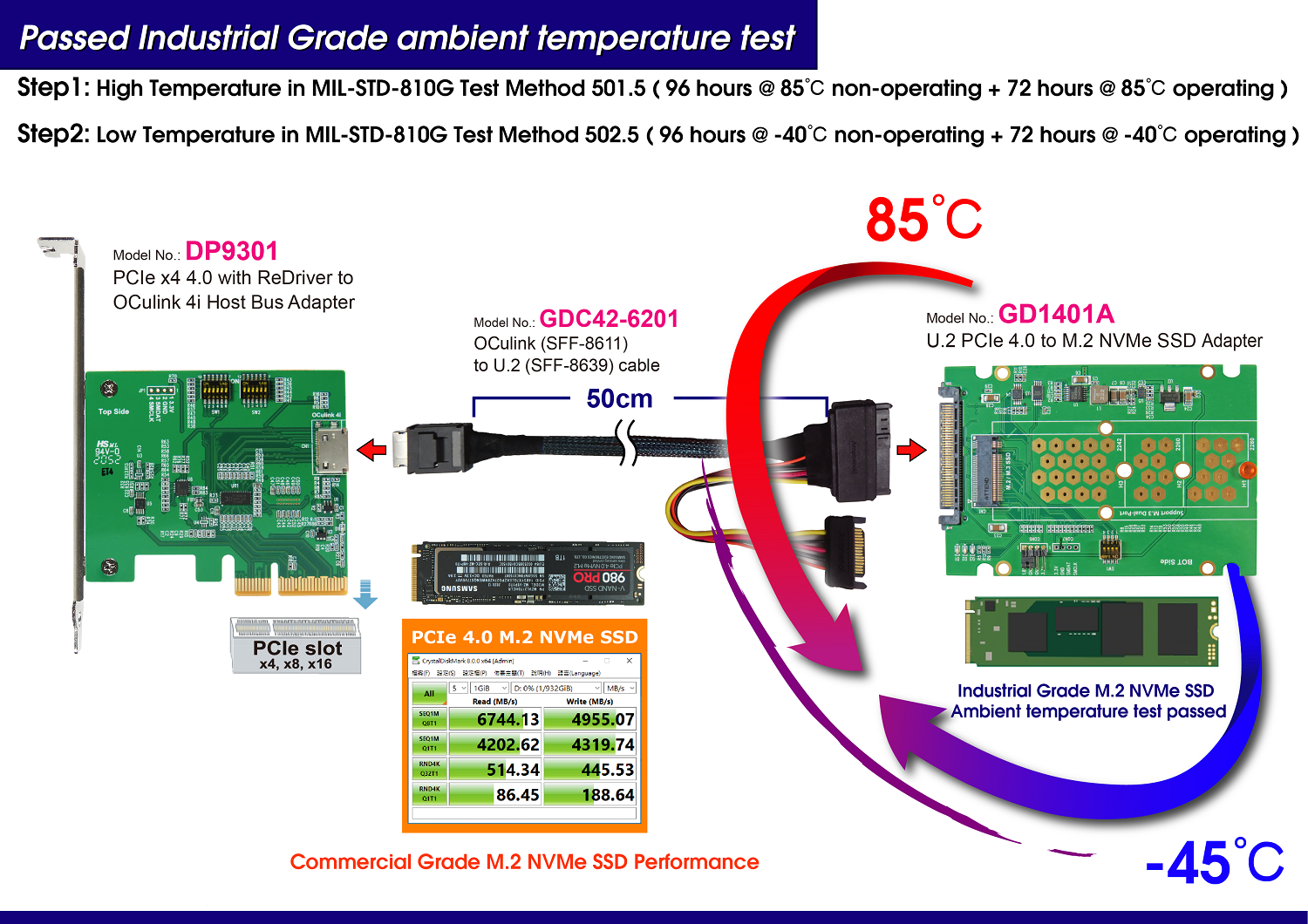

Test Report:
