M2PAD V2.0 (M.2 Bracket)

Write a Review
$3.00
SKU:
M2PAD V2.0
Availability:
Contact support@mfactors.com to order
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Product Overview

M2PAD V2.0 (M.2 Bracket)

M2PAD is a Bracket for M.2 (NGFF) cards. This Bracket has six types to allow you stable your M.2 card to larger M.2 slot. As width is 22mm for 22xx modules, it can be used for other width such as 30mm for 30xx modules.  It’s also a powerful test tool for M.2 cards user.

Patent Pending

Specifications

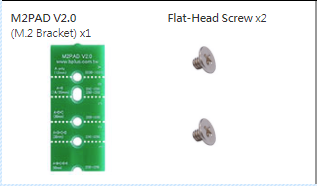

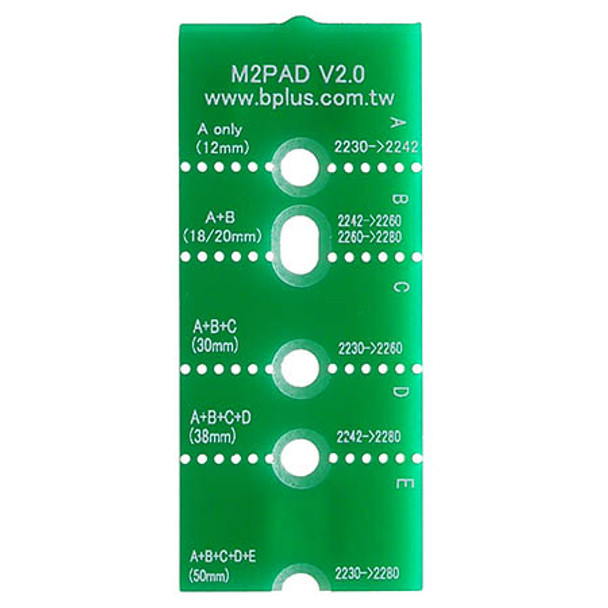

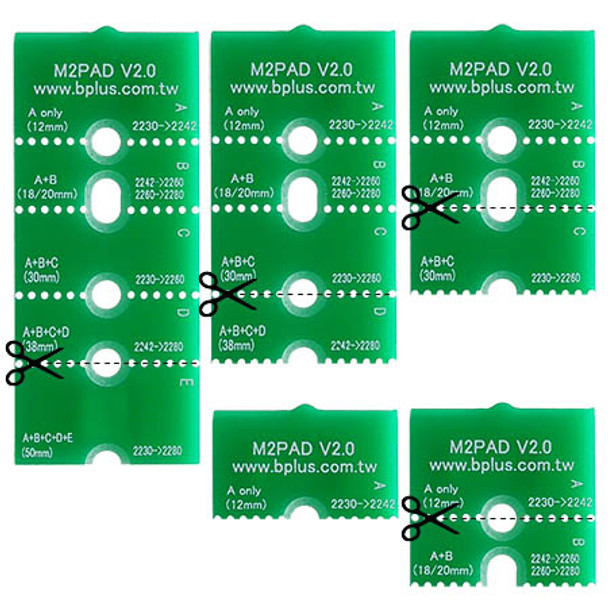

  • Type A:                  12mm: Insert type 2230 M.2 card to type 2242 type M.2 slot. (3030 to 3042)
  • Type A+B:              18mm: Insert type 2242 M.2 card to type 2260 type M.2 slot.
    Type A+B:              20mm: Insert type 2260 M.2 card to type 2280 type M.2 slot.
  • Type A+B+C:          30mm: Insert type 2230 M.2 card to type 2260 type M.2 slot.
  • Type A+B+C+D:      38mm: Insert type 2242 M.2 card to type 2280 type M.2 slot.
  • Type A+B+C+D+E:  50mm: Insert type 2230 M.2 card to type 2280 type M.2 slot.








Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
3D Model Taiwan 1 Taiwan 2 China
