Product Overview

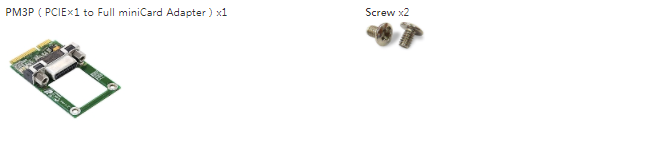

PM3P (PCIE×1 to Full miniCard Adapter)
Introduction:
The PM3P PCIE×1 to full mini card is a converter tool for minicard interface. This module allows you to use your PCIE cable in the full mini card slot.
It's especially designed to save valuable labor and time in the production environment.
Specification:
- Supports PCIE×1 to full size minicard slot
- Add Power LED, Access LED
- Molex 749603018 High quality connectors for long service life

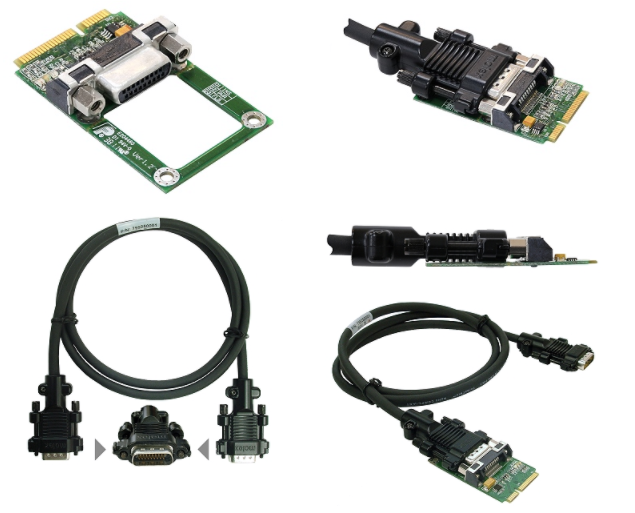

- Support Molex 0799250001 TDP® (Triad® Differential Pair) PCIe x1 Cable Assembly, 18 Circuit, 1.00m (3.281' ) Length, 4-40 Jackscrew
System Requirements:
- MiniCard full size slot
